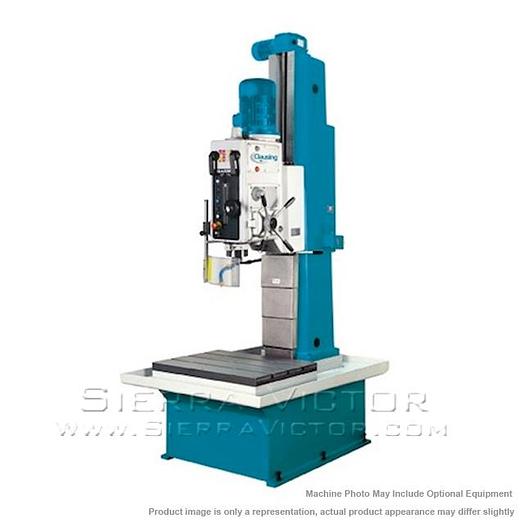

CLAUSING/IBARMIA Geared-Drive Prismatic Column Drills BP-70

CLAUSING/IBARMIA Geared-Drive Prismatic Column Drills BP-70

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ITEM: 2.76" Geared-Drive Prismatic Column Drills MANUFACTURER: CLAUSING/IBARMIA MODEL: SERIES P PART# BP-70 / BP-70L / BP-70RS / BP-70LRS

Specifications

ManufacturerClausing
ModelBP-70
ConditionNew
Stock NumberBP-70
Spindle taper5MT
Optional spindle taper (on request)ISO-40/50
Quill diameter3.54" (90mm)
Spindle travel (drilling depth)10.24" (260mm)
Main motor power10 Hp (7.3Kw)
Standard motor:
Coolant pump motor power.12 Hp (.09Kw)
Head geared-motor power1.5 Hp (1.1Kw)
Number of speed (see speed charts)12
Number of automatic feeds6
Auto feed range in./rev. (mm/rev.).0039/.0079/.118/.157/ .197/.236 (.1/.2/.3/.4/.5/.6)
Maximum drilling capacity in cast iron3.14" (80mm)
Maximum tapping capacity in steel2.51" (64mm)
Maximum tapping capacity in cast iron2.68" (68mm)
Base length (B)62.6"/64.6" (1590/1640mm)
Spindle center to column (D)20.67" (525mm)
Worktable width (F)27.56" (700mm)
Worktable height (G)27.56" (700mm)
Worktable length (H)35.43" (900mm)
Overall width (I)47.24" (1200mm)
Shipping dimensions (length x width x height)56" x 111"/130" x 79" (1.4 x 2.8/3.3 x 2m)
3,600124 - 2,440 rpm
900 / 1,80031 - 1,120
1,800 - 3,60062 - 2,240
