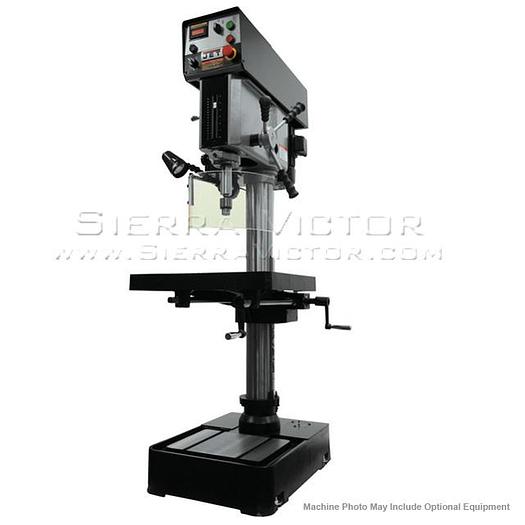

JET JDP20VST HD Variable Speed Drill Press with Tapping 354240
JET JDP20VST HD Variable Speed Drill Press with Tapping 354240
$5,839
Description
Please note: many products ship straight from manufacturer JET JDP20VST HD VS DRILL PRESS WITH TAPPING, 354240 Solid design and construction deliver precision operation and control. JET 20” Variable Speed Drill Presses combine variable speed spindles with a massively constructed head that increases accuracy and rigidity. That’s all on top of a steel column and a heavy-duty cast iron base. Steel Column Heavy Duty Casted Iron Design Head is massively constructed for more accuracy and rigidity Large Precision Ground T-slot Production Table for easy set ups Massive 3" Quill Diameter CSA Coolant System CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified LED Machine Lamp Spindle Guard Variable Spindle Speeds from 65 - 2,000 RPM's Front Mounted LED Spindle RPM Readout Front Mounted Positive Control Depth Stop Table rotates 360° around the column Machine T-Slotted base Large Hand Grips designed with the Users comfort in mind
STANDARD EQUIPMENT: Spindle Safety Guard LED Machine Lamp CSA Coolant System
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR
Specifications
| Manufacturer | Jet |
| Model | JDP20VST |
| Condition | New |
| Stock Number | 354240 |
| Distance Column to Spindle (In.) | 10-7/16 |
| Number of Spindle Speeds | Variable |
| Range of Spindle Speeds (RPM) | 150 - 2,000 |
| Column Diameter (In.) | 4-1/2 |
| Spindle Taper (In. x TPI) | MT-3 |
| Spindle Travel (In.) | 6 |
| Spindle Distance to Base (In.) | 44-1/2 |
| Max Distance Spindle to Table ( In.) | 30-1/4 |
| Table Size (L x W) (In.) | 22 x 18-3/4 |
| T-Slots Number and Size (In.) | 3 & 5/8 |
| T-Slots Centers (In.) | 7-7/16 |
| Work Table Weight Capacity (Lbs.) | 154 |
| Base Dimensions (L x W x H) (In.) | 27 x 19 |
| Base Work Area (In.) | 14-3/4 x 11-13/16 |
| Base Slots Number & Size (In.) | 2 & 5/8 |
| Motor (HP) | 2HP, 230V, 3ph, 4/8P |
| Overall Dimensions (L x W x H) (In.) | — |
| Weight (Lbs.) | 780 |
