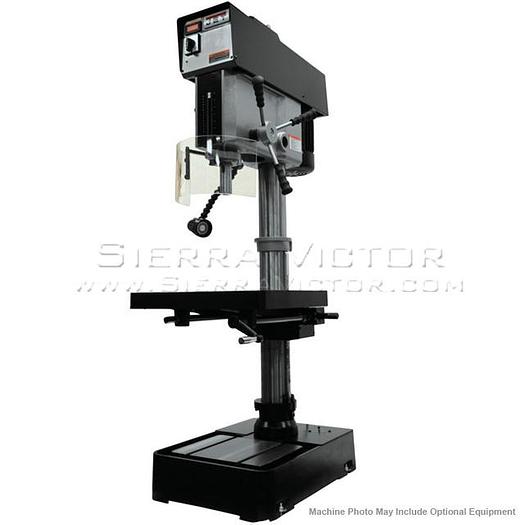

JET JDP-20VS-1 Variable Speed Drill Press 1-PH 354230
JET JDP-20VS-1 Variable Speed Drill Press 1-PH 354230
$4,099
Description
Please note: many products ship straight from manufacturer JET JDP-20VS-1 20". VS DRILL PRESS 1-PH, 354230 Solid design and construction deliver precision operation and control. JET 20” Variable Speed Drill Presses combine variable speed spindles with a massively constructed head that increases accuracy and rigidity. That’s all on top of a steel column and a heavy-duty cast iron base. Steel Column Heavy Duty Casted Iron Design Head is massively constructed for more accuracy and rigidity Large Precision Ground T-slot Production Table for easy set ups Massive 3" Quill Diameter CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified LED Machine Lamp Spindle Guard Variable Spindle Speeds from 65 - 2,000 RPM's Front Mounted LED Spindle RPM Readout Front Mounted Postitive Control Depth Stop Table rotates 360° around the column Machine T-Slotted base Large Hand Grips designed with the Users comfort in mind STANDARD EQUIPMENT: Spindle Safety Guard LED Machine Lamp ITEM: 20" Variable Speed Drill Press MANUFACTURER: JET MODEL: JDP-20VS-1 PART# 354230
Specifications
| Manufacturer | Jet |
| Model | JDP-20VS-1 |
| Condition | New |
| Stock Number | 354230 |
| Distance Column to Spindle (In.) | 10-7/16 |
| Number of Spindle Speeds | Variable |
| Range of Spindle Speeds (RPM) | 300 -2,000 |
| Column Diameter (In.) | 4-1/2 |
| Spindle Taper (In. x TPI) | MT-3 |
| Spindle Travel (In.) | 6 |
| Spindle Distance to Base (In.) | 44-1/2 |
| Max Distance Spindle to Table ( In.) | 30-1/4 |
| Table Size (L x W) (In.) | 22 x 18-3/4 |
| T-Slots Number and Size (In.) | 3 & 5/8 |
| T-Slots Centers (In.) | 7-7/16 |
| Work Table Weight Capacity (Lbs.) | 154 |
| Base Dimensions (L x W x H) (In.) | 27 x 19 |
| Base Work Area (In.) | 14-3/4 x 11-13/16 |
| Base Slots Number & Size (In.) | 2 & 5/8 |
| Motor (HP) | 2HP, 115/ 230V, 1ph ,4P |
| Overall Dimensions (L x W x H) (In.) | — |
| Weight (Lbs.) | 780 |
