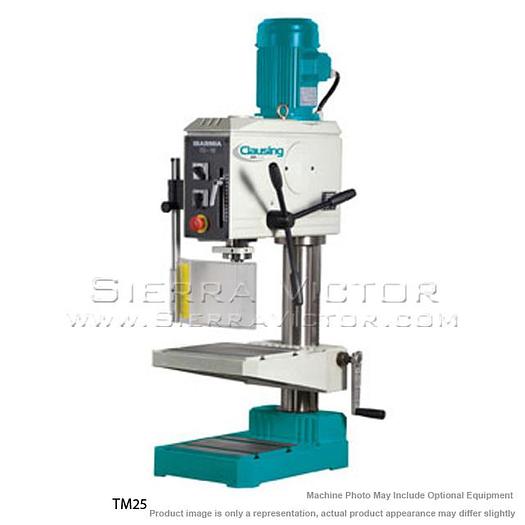

CLAUSING/IBARMIA Geared-Drive Round Column Drills TS-25

CLAUSING/IBARMIA Geared-Drive Round Column Drills TS-25

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ITEM: 25mm Geared-Drive Round Column Drills MANUFACTURER: CLAUSING/IBARMIA MODEL: SERIES T PART# TS25 / TS25RS / TM25 / TM25RS / TL25 / TL25RS

Specifications

ManufacturerClausing
ModelTS-25
ConditionNew
Stock NumberTS-25
Spindle taper3MT
Quill diameter2.44" (62mm)
Spindle travel (drilling depth)4.72" (120mm)
Main motor power1/1.5 Hp (.73/1.1 Kw)
Standard Motor1800/3600 rpm
Spindle Speeds (rpm)90-192-300-504-612-1020-1740-3360
Number of speed (see speed charts)8
Maximum drilling capacity in cast iron1.18" (30mm)
Maximum tapping capacity in steel.71" (18mm)
Maximum tapping capacity in cast iron.87" (22mm)
Spindle center to column (D)9.84"( 250mm)
Column diameter (H)3.94" (100mm)
