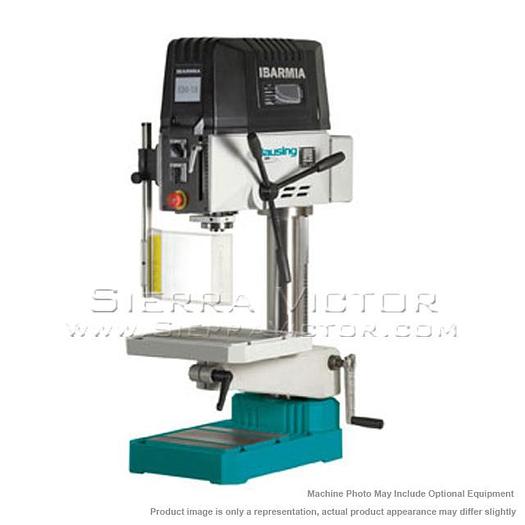

CLAUSING/IBARMIA Belt-Drive Round Column Drills KS-18

CLAUSING/IBARMIA Belt-Drive Round Column Drills KS-18

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ITEM: 18mm Belt-Drive Round Column Drills MANUFACTURER: CLAUSING/IBARMIA MODEL: SERIES K PART# KS-18 / KM-18 / KL-18

Specifications

ManufacturerClausing
ModelKS-18
ConditionNew
Stock NumberKS-18
Spindle taper3MT
Quill diameter2.44" (62mm)
Spindle travel (drilling depth)4.72" (120mm)
Main motor power.5/.75 Hp (.40/.55 Kw)
Standard Motor1800/3600 rpm
Step pulley spindle speeds (rpm)240-432-480-780-864-1404 -1560-2400-2808-4800
Variable speed spindle speed range (rpm)300-4800
Number of speed (see speed charts)10
Maximum drilling capacity in cast iron1" (25mm)
Maximum tapping capacity in steel.55" (14mm)
Maximum tapping capacity in cast iron.71" (18mm)
Spindle center to column (D)9.84" (250mm)
Column diameter (H)3.94" (100mm)
