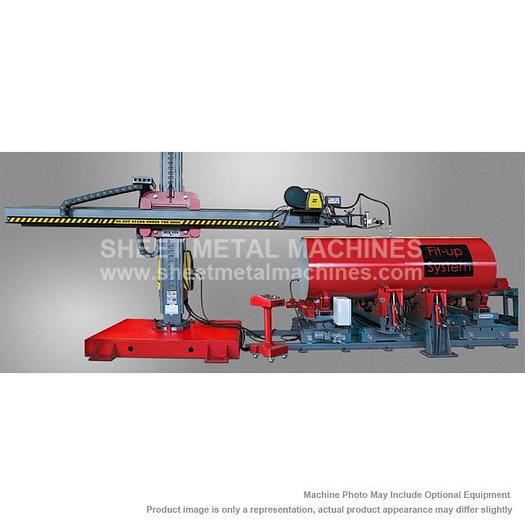

AKYAPAK SFU30 FIT-Up Rotator

AKYAPAK SFU30 FIT-Up Rotator

Contact us for price

orCall 386-304-3720

Description

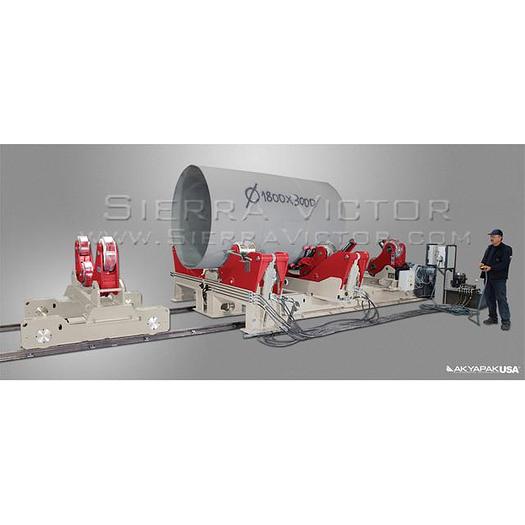

Please note: many products ship straight from manufacturer AKYAPAK SFU30 FIT-Up Rotator Fitup rotators are developed to joint two pieces. two circular pieces can easily be concentrically adjusted. Fitup rotators consist of two idle units. One of the units is fix on the ground with steel rollers and the other travels on the rail with PU coated rollers. The rails should also be purchased. The length of the rail is not standard since the length of the piece is various. Fitup rotators cannot be ordered only one set. Required rail working length and other devices which work in line with fit-up unit is being engineered before the offer to meet customer application. STANDARD EQUIPMENT: Self-aligned diameter adjustments Remote controller with 5 meter cable length Two direction movement by hydraulic cylinders (left-right + updown) Steel wheels on traveling unit PU wheels on fix unit Idler bogie system with traveling unit ITEM: 30 Ton FIT-Up Rotator MANUFACTURER: AKYAPAK MODEL: SFU30 Custom roller designs Single fitup bed consists of 2 additional SAR rotators. Please ask for more details. Wireless remote controller

Specifications

ManufacturerAKYAPAK
ModelSFU30
ConditionNew
Stock NumberSFU30
Load Capacity (lbs)66,000
Maximum Diameter (in)177
Minimum Diameter (in)59
Maximum Length (in)177
Minimum Length (in)118
Max. Circumferential Speed (ft/min)2.67
Min. Circumferential Speed (ft/min)0.79
Hydraulic Power (HP)4
Max. Hydraulic Pressure (PSI)2175
Support for Screw EffectOptional
Brush Type EarthingOptional
Total Power (HP)9
Control Panel Voltage24V
Rail TypeA 55
Rail Axe Distance (in)66.75
Weight (lbs)46,850
Voltage380 / 400 / 415 / 480V / 50Hz 3P
