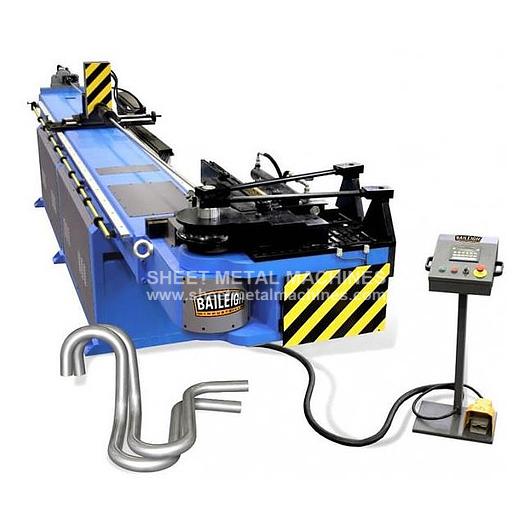

BAILEIGH Numerically Controlled Hydraulic Mandrel Bender MB-100NCH-2

BAILEIGH Numerically Controlled Hydraulic Mandrel Bender MB-100NCH-2

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer BAILEIGH Numerically Controlled Hydraulic Mandrel Bender MB-100NCH-2

  •  The MB-NCH-2 mandrel machine offers increased control and accuracy for applications that require multi-plane bending.
  • The numerical control made by Telemecanique, can handle up to 25 programs with 10 bends (Y-axis) and 10 rotations (Z-axis) per program. Our complete hydraulic design comes standard with 10 bending speeds, which govern both bending and pressure die assist for optimal control.
  • The Baileigh Industrial mandrel bender line incorporates cutting edge clamping technology by means of Direct Acting Cylinders (DAC), resulting in unequaled quality.
  • With NC controlled models available in sizes ranging from 1/4” up to a massive 13” O.D bending capacity there is no job too small or too large.
  • Call us today 386-304-3720 for a formal quote and for more information on how our equipment can help increase productivity and profitability.
  • 2-axis numerically controlled bend degree (Y) and rotation (Z)
  • Memory can store up to 25 programs with 10 bends (Y) and 10 rotations (Z) per program
  • 3rd axis sequential adjustable roller stop system - (X)
  • Completely hydraulic design allowing for optimal accuracy and performance
  • Industry leading clamping design via high-quality Direct Acting Cylinders (DAC)
  • Up to 10 programmable bending speeds and pressure die assist speeds for maximum control
  • Fully hydraulic clamping with standard pressure die assist and mandrel extraction
  • Can be operated in both manual and automatic modes
  • Numerical control alarm monitoring for quick and easy troubleshooting
  • Available in capacities up to 13” O.D round tube
  • Other larger sizes and customizations are available upon request.

ITEM: 104 x 4mm Numerically Controlled Hydraulic Mandrel Bender MANUFACTURER: BAILEIGH MODEL: MB-100NCH-2


OPTIONAL ITEMS: Automatic tool retraction Automatic mandrel lubrication Additional useful bed length (3ft Increments) Split die system for square and special profiles Increased program storage available upon request

Specifications

ManufacturerBaileigh Industrial
ModelMB-100NCH-2
ConditionNew
Stock NumberMB-100NCH-2
Max Tube O.D (MS)104 x 4 mm
Max Tube O.D (SS)100 x 1.5mm
Max Square Tube (ms)80 x 80 x 5mm
Maximum Center Line Radius310mm
Maximum useful Length4000mm
Total Power (HP)30.3 kw
Weight15,873 lbs. (7,200 kgs)
Dimensions L x W x H268" x 71" x 69" (6800 x 1800 x 1750mm)
Power Requirements (MS)400V, 50Hz, 3 Phase
