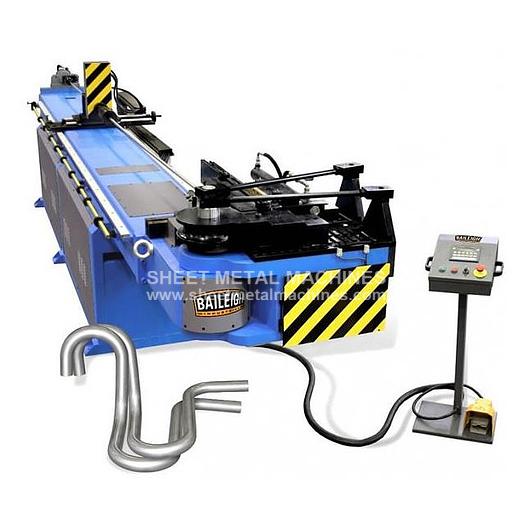

BAILEIGH Numerically Controlled Hydraulic Mandrel Bender MB-80NCH-2

BAILEIGH Numerically Controlled Hydraulic Mandrel Bender MB-80NCH-2
Contact us for price
Description
Please note: many products ship straight from manufacturer
- The MB-NCH-2 mandrel machine offers increased control and accuracy for applications that require multi-plane bending.
- The numerical control made by Telemecanique, can handle up to 25 programs with 10 bends (Y-axis) and 10 rotations (Z-axis) per program. Our complete hydraulic design comes standard with 10 bending speeds, which govern both bending and pressure die assist for optimal control.
- The Baileigh Industrial mandrel bender line incorporates cutting edge clamping technology by means of Direct Acting Cylinders (DAC), resulting in unequaled quality.
- With NC controlled models available in sizes ranging from 1/4” up to a massive 13” O.D bending capacity there is no job too small or too large.
- Call us today 386-304-3720 for a formal quote and for more information on how our equipment can help increase productivity and profitability.
- 2-axis numerically controlled bend degree (Y) and rotation (Z)
- Memory can store up to 25 programs with 10 bends (Y) and 10 rotations (Z) per program
- 3rd axis sequential adjustable roller stop system - (X)
- Completely hydraulic design allowing for optimal accuracy and performance
- Industry leading clamping design via high-quality Direct Acting Cylinders (DAC)
- Up to 10 programmable bending speeds and pressure die assist speeds for maximum control
- Fully hydraulic clamping with standard pressure die assist and mandrel extraction
- Can be operated in both manual and automatic modes
- Numerical control alarm monitoring for quick and easy troubleshooting
- Available in capacities up to 13” O.D round tube
- Other larger sizes and customizations are available upon request.
ITEM: 80 x 3.5mm Numerically Controlled Hydraulic Mandrel Bender MANUFACTURER: BAILEIGH MODEL: MB-80NCH-2 Automatic tool retraction Automatic mandrel lubrication Additional useful bed length (3ft Increments) Split die system for square and special profiles Increased program storage available upon request
Specifications
Manufacturer | Baileigh Industrial |
Model | MB-80NCH-2 |
Condition | New |
Stock Number | MB-80NCH-2 |
Max Tube O.D (MS) | 80 x 3.5mm |
Max Tube O.D (SS) | 76 x 1.5mm |
Max Square Tube (ms) | 60 x 60 x 4mm |
Maximum Center Line Radius | 250mm |
Maximum useful Length | 3500mm |
Total Power (HP) | 15 kw |
Weight | 9,260 lbs. (4,200 kgs) |
Dimensions L x W x H | 221" x 53" x 59" (5600 x 1350 x 1500mm) |
Power Requirements (MS) | 400V, 50Hz, 3 Phase |
