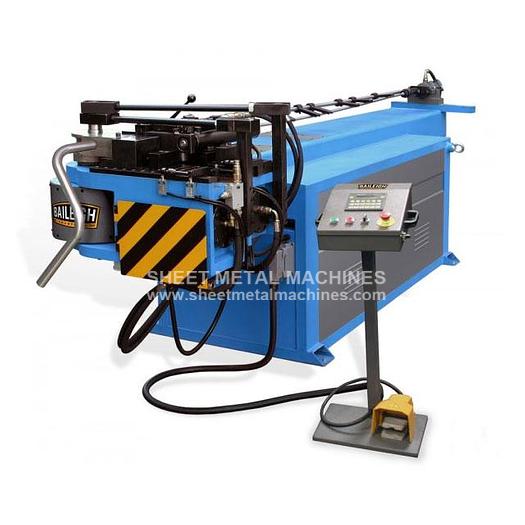

BAILEIGH Numerically Controlled Hydraulic Mandrel Bender MB-80NCH-1

BAILEIGH Numerically Controlled Hydraulic Mandrel Bender MB-80NCH-1

Contact us for price

orCall 386-304-3720


Please note: many products ship straight from manufacturer BAILEIGH Numerically Controlled Hydraulic Mandrel Bender MB-80NCH-1 Baileigh Industrial’s hydraulic mandrel benders are high-speed, high-performance, and highly accurate (+/- 0.1°), designed for high production and heavy-duty bending. They are available in many different formats, from NC through to full CNC control and with the capability of working on up to 16 different axes. A large range of bending radii can be achieved with the hydraulic range of machines. The push bend option will allow the operator to achieve very large radius bends. With the booster option D bends can be achieved (bend radius 1 x outside diameter of the tube). With capacities from 35mm to 350mm OD (outside diameter) the range covers all applications. As standard, the machines are supplied with a hydraulic mandrel extractor, pressure die, and pressure die assist. Along with many other options, we have the ability to integrate the machines with loading and finishing systems. 1 axis Numerically Controlled bend degree (Y) Memory can store up to 25 programs with 10 bends (Y) 3rd axis Sequential adjustable roller stop system - (X) Completely hydraulic design allowing for optimal accuracy and performance Industry leading clamping design via high quality Direct Acting Cylinders (DAC) Up to 10 programmable bending speeds and pressure die assist speeds for maximum control Fully hydraulic clamping with standard pressure die assist AND Mandrel Extraction Can be operated in both Manual and Automatic modes Numerical control alarm monitoring for quick and easy troubleshooting Available in capacities up to 13” O.D Round tube CALL 386-304-3720 FOR MORE INFORMATION

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



ManufacturerBaileigh Industrial
Stock NumberMB-80NCH-1
Max Tube O.D (MS)80 x 3.5mm
Max Tube O.D (SS)76 x 1.5mm
Max Square Tube (ms)60 x 60 x 4mm
Maximum Center Line Radius280mm
Maximum useful Length3500mm
Total Power (HP)15 kw
Weight8,819 lbs. (4,000 kgs)
Dimensions L x W x H181" x 53" x 55" (4600 x 1350 x 1400mm)
Power Requirements / Motor400V, 50Hz, 3 Phase
