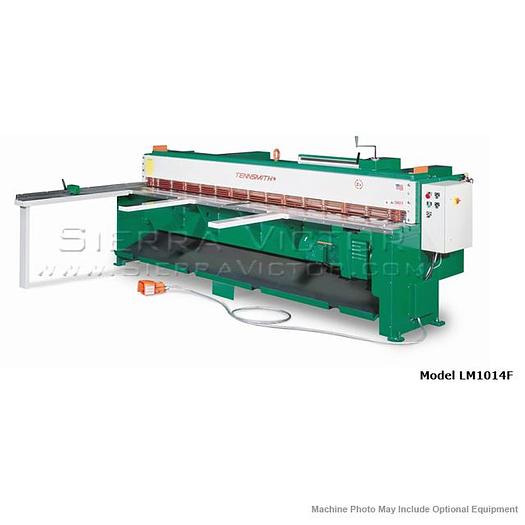

TENNSMITH Low-Profile Mechanical Shear with Performance-R Package LM1014-R

TENNSMITH Low-Profile Mechanical Shear with Performance-R Package LM1014-R

$29,100

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer TENNSMITH Low-Profile Mechanical Shear with Performance-R Package LM1014-R (Rear Return Sheet Support System) MADE IN USA LM Series mechanical shears utilize a simple low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance. The LM1014 incorporates the unique 2x back gauge system. This allows the operator to move the backstop from 0 to 30 inches in approximately 2 seconds with only two rotations of the handle. The LM 2x back-gauge can be ordered with an optional digital readout. The 2x digital readout increments are 0.001” The LM Series shears are standard with four-edge, high carbon, high chrome top and bottom blades , independent, self-leveling hold down feet with neoprene inserts, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs. The LM1014 capacities are 14-gauge mild steel, 18-gauge stainless up to 121 inches in cutting length. To enhance productivity, optional equipment available for the machine includes: five or ten-foot squaring arm, front support arms, light beam and protractor attachments. LM1014 can be order with an optional air operated sheet support system. This system is available in two styles: System-R drops the support material to the rear of the machine; System-F returns the supported material to the front of the machine via a front return chute. The LM series shears are available in a reduced price “Performance Package” configuration. The Performance Package includes: a Five Foot Squaring Arm, a pair of Front Support Arms, and Air Operated Sheet Support System. Performance “R” system is for rear return, Performance “F” system is for front return. A moveable Material Cart is available for both Front and Rear Return machines. Please contact Sierra Victor Industries 386-304-3720 for a details and a complete listing of optional equipment The LM Series Performance Packages include: Five Foot Squaring Arm, Two Front Support Arms and Air Operated Sheet Support System. “R” Rear Drop Support “F” Front Return Support System “C” with Material Cart ITEM: 121" x 14 ga Low-Profile Mechanical Shear MANUFACTURER: TENNSMITH MODEL: LM SERIES PART# LM1014-R OPTIONAL ITEMS: Wired for CSA Canadian Electrical Standard: $350 83800: Squaring Arm Five Foot with Dual Inlaid Inch/Metric Scale: $1,125 83805: Squaring Arm Ten Foot with dual Inlaid Inch/Metric Scale: $2,365 83815: Additional Flip-up Stops for Squaring Arm (each): $220 83820: Front Support Arms Pair: $295 83825: T-Slotted Table with Two Front Support Arms with Inlaid Inch/Metric Scales: $2,025 83830: Additional Flip-up Stops for T-Slotted Support Arms and Table (each): $205 83835: Power Back-gauge 30-Inch Travel: $6,250 83840: Protractor Attachment: $650 83885: Work Shadow Light LM Series: $925 83895: Digital Readout for 2x Back-gauge System: $1,050 83890: Stroke Counter (Electro-Mechanical): $325 83935: LM1014 High Carbon High Chrome 4 Edge per set: $2,300 Increased Cutting Speeds (Please consult factory)

Specifications

ManufacturerTennsmith
ModelLM1014-R
ConditionNew
Stock Number83210
Maximum shearing capacity, Mild Steel14 gauge
Maximum shearing capacity, Stainless Steel18 gauge
Maximum cutting length121"
Back gauge range30" / 762mm
Strokes per minute, full length35
Number of hold down feet16
Motor - 230 or 460V, 3-Phase, 60Hz (specify)5 HP
Floor Space, Gauges in Position139" x 60" x 55-1/2"
Overall Dimensions, Less Gauges, LxWxH139" x 27" x 55-1/2"
Shipping Weight:6,200 lbs.
