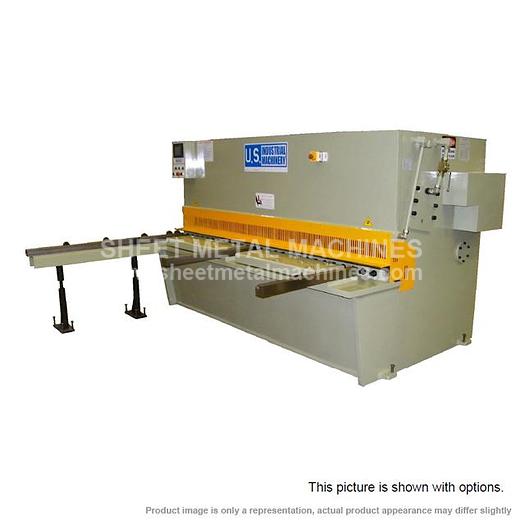

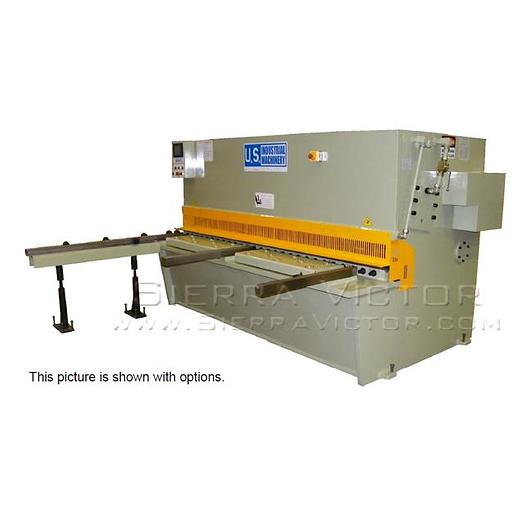

U.S. INDUSTRIAL Hydraulic Shear US8375

U.S. INDUSTRIAL Hydraulic Shear US8375


orCall 386-304-3720


Please note: many products ship straight from manufacturer U.S. INDUSTRIAL Hydraulic Shear US8375 ITEM: 8' x 3/8" Hydraulic Shear MANUFACTURER: U.S. INDUSTRIAL MODEL: US 8375 EQUIPPED WITH: *Material Support/Drop Chute (*included in price) Squaring arm High Carbon, High Chrome Shear Blades Ball Transfers on Each Table Segment Manual Quick Change Blade Gap Adj. Squaring Arm, 39.5” from blade to end Stroke Counter Front-controlled Power Back Gauge Blade Guard, Micro Switch Protected Hydraulic, Electrical Overload Protection Automatic Swing-up on Back Gauge Bolt on table segments…quantity of 3 Hold-downs faced w/anti-mar neoprene Swing Beam Design Pressure Sensing Hold Downs Electric Stroke Adjustment Operator Control Console Shadow Lighting Low Noise Gear Pump Support Arms Included OPTIONAL ITEMS: CALL FOR PRICE 3-axis CNC programmable back gauge: Touch-screen operated. Controls back gauge depth, blade gap and stroke length. It has a 200 program storage capacity, and it can be operated in manual or automatic mode. Pneumatic sheet support 6 foot squaring arm 8 foot squaring arm 10 foot squaring arm 48" back gauge; no swing up Training in our Memphis, TN Showroom Training at customer site, less than 300 miles from Memphis Training at customer site, more than 300 miles from Memphis Training outside continental USA


ManufacturerUS Industrial
Stock NumberUS 8375
Sheet size98"
Shearing capacity3/8" mild steel @ 65,000 PSI
Shear angle1° 30'
No load strokes12
Throat depth4.7"
Adjustment range of back gauge0.75" - 36"
Hydraulic oil capacity66 gals.
Motor20 HP
Dimensions131" x 80" x 70"
Weight approx.19,841 lbs
