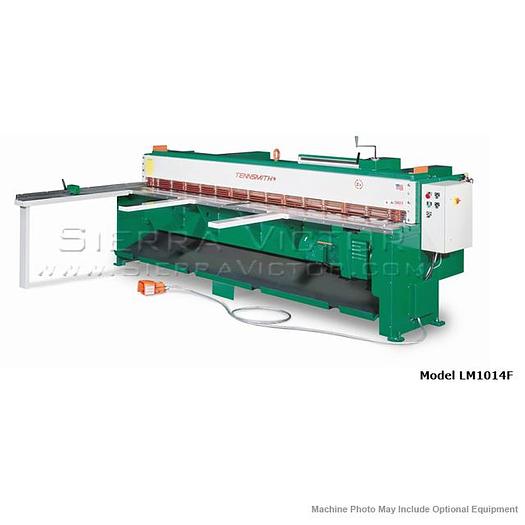

TENNSMITH Low-Profile Mechanical Shear with Performance Package-R LM1214-R

TENNSMITH Low-Profile Mechanical Shear with Performance Package-R LM1214-R

$37,600

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer TENNSMITH Low-Profile Mechanical Shear with Performance Package-R LM1214-R (Rear Return Sheet Support System) ITEM: 12' (145") x 14 ga Low-Profile Mechanical Shear MANUFACTURER: TENNSMITH MODEL: LM SERIES PART# LM1214-R MADE IN USA TENNSMITH'S LM Series Mechanical Shears utilize a low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance. The LM410 incorporates the unique 2x-F back gauge system. This allows the operator to move the backstop from 0 - 24 inches in approximately 2 seconds with only two rotations of the handle. The LM610 and LM810 incorporate the same 2x-F system, but with the added capacity of 30-inch travel. An optional digital readout is available for this system. The LM Series shears are standard with four-edge, high carbon, high chrome top and bottom blades, independent, self-leveling hold down feet with neoprene inserts, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs. To enhance productivity, optional equipment available for the machines. The LM1014, LM1012, and LM1214 can be delivered with an optional air operated sheet support system. This system is available in two styles: System-R drops the supported material to the rear of the machine System-F returns the supported material to the front of the machine via a front return chute OPITONAL ITEMS: Wired for CSA Canadian Electrical Standard: $350 83800: Squaring Arm Five Foot with Dual Inlaid Inch/Metric Scale: $1,125 83805: Squaring Arm Ten Foot with dual Inlaid Inch/Metric Scale: $2,365 83815: Additional Flip-up Stops for Squaring Arm (each): $220 83820: Front Support Arms Pair: $295 83825: T-Slotted Table with Two Front Support Arms with Inlaid Inch/Metric Scales: $2,025 83830: Additional Flip-up Stops for T-Slotted Support Arms and Table (each): $205 83835: Power Back-gauge 30-Inch Travel: $6,250 83840: Protractor Attachment: $650 83885: Work Shadow Light LM Series: $925 83895: Digital Readout for 2x Back-gauge System: $1,050 83890: Stroke Counter (Electro-Mechanical): $325 83935: LM1214 High Carbon High Chrome 4 Edge per set: $2,450 Increased Cutting Speeds (Please consult factory) All LM Series Shears are available in a reduced price "Performance Package" configuration. The Performance Package includes: 5 foot squaring arm A pair of front support arms Air operated sheet support system Performance "R" system is for rear return Performance "F" system is for front return A moveable material cart is available for both front and rear return machines (LM1014, LM1012, and LM1214 only) Please Contact Sierra Victor Industries at 386-304-3720 for a complete listing of optional equipment

Specifications

ManufacturerTennsmith
ModelLM1214-R
ConditionNew
Stock Number83510
Maximum shearing capacity, Mild Steel14 gauge
Maximum shearing capacity, Stainless Steel18 gauge
Maximum cutting length145"
Back gauge range30" / 762mm
Strokes per minute, full length35
Number of hold down feet16
Motor - 230/460V, 3-Phase, 60Hz7.5 HP
Dimensions, (LxWxH)164" x 72" x 56"
Shipping Weight:7,530 lbs.
