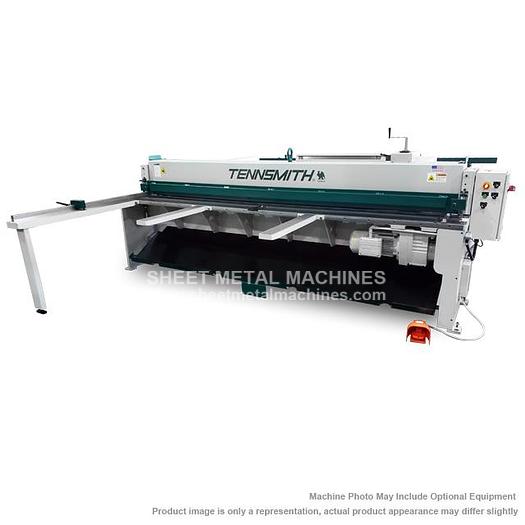

TENNSMITH Low-Profile Mechanical Shear with Performance Package-F LM1214-F

TENNSMITH Low-Profile Mechanical Shear with Performance Package-F LM1214-F

$38,800

orCall 386-304-3720

Description

  • Please note: many products ship straight from manufacturer TENNSMITH 12' (145") x 14 ga Low-Profile Mechanical Shear with Performance Package-F LM1214-F MADE IN USA. TENNSMITH'S LM Series Mechanical Shears utilize a low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance. The LM410 incorporates the unique 2x-F back gauge system. This allows the operator to move the backstop from 0 - 24 inches in approximately 2 seconds with only two rotations of the handle. The LM610 and LM810 incorporate the same 2x-F system, but with the added capacity of 30-inch travel. An optional digital readout is available for this system. The LM Series shears are standard with four-edge, high carbon, high chrome top and bottom blades, independent, self-leveling hold down feet with neoprene inserts, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs. To enhance productivity, optional equipment available for the machines. The LM1014, LM1012, and LM1214 can be delivered with an optional air operated sheet support system. This system is available in two styles: System-R drops the supported material to the rear of the machine System-F returns the supported material to the front of the machine via a front return chute OPTIONAL ITEMS:
  • Wired for CSA Canadian Electrical Standard: $395
  • 83800: Squaring Arm Five Foot with Dual Inlaid Inch/Metric Scale: $1,125
  • 83805: Squaring Arm Ten Foot with dual Inlaid Inch/Metric Scale: $2,530
  • 83815: Additional Flip-up Stops for Squaring Arm (each): $220
  • 83820: Front Support Arms Pair: $295
  • 83825: T-Slotted Table with Two Front Support Arms with Inlaid Inch/Metric Scales: $2,025
  • 83830: Additional Flip-up Stops for T-Slotted Support Arms and Table (each): $205
  • 83835: Power Back-gauge 30-Inch Travel: $6,750
  • 83840: Protractor Attachment: $650
  • 83885: Work Shadow Light LM Series: $925
  • 83895: Digital Readout for 2x Back-gauge System: $1,050
  • 83890: Stroke Counter (Electro-Mechanical): $325
  • 83935: LM1214 High Carbon High Chrome 4 Edge per set: $2,450 All LM Series Shears are available in a reduced price "Performance Package" configuration. The Performance Package includes: 5 foot squaring arm A pair of front support arms Air operated sheet support system Performance "R" system is for rear return Performance "F" system is for front return A moveable material cart is available for both front and rear return machines (LM1014, LM1012, and LM1214 only) Please Contact Sierra Victor Industries at 386-304-3720 for a complete listing of optional equipment

Specifications

ManufacturerTennsmith
ModelLM1214-F
ConditionNew
Stock Number83530
Maximum shearing capacity, Mild Steel14 gauge
Maximum shearing capacity, Stainless Steel18 gauge
Maximum cutting length145"
Back gauge range30" / 762mm
Strokes per minute, full length35
Number of hold down feet16
Motor - 230/460V, 3-Phase, 60Hz7.5 HP
Dimensions, (LxWxH)164" x 72" x 56"
Shipping Weight:7,530 lbs.
