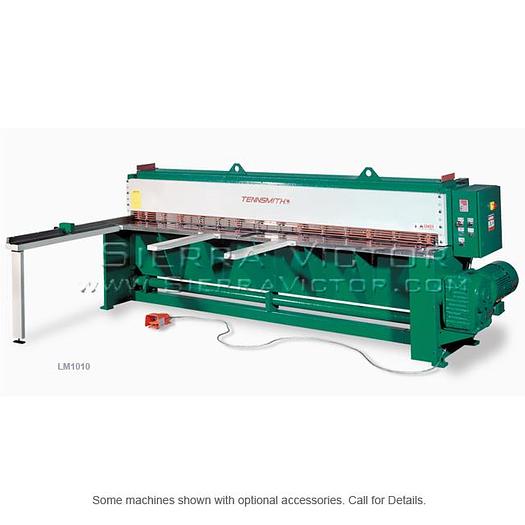

TENNSMITH Low-Profile Mechanical Shear LM1010-2X

TENNSMITH Low-Profile Mechanical Shear LM1010-2X

Contact us for price

orCall 386-304-3720


Please note: many products ship straight from manufacturer TENNSMITH 121" x 10 ga Low-Profile Mechanical Shear LM1010-2X MADE IN USA. TENNSMITH'S LM1010 / LM1210 is equipped with a standard "Go-To" 30 inch back gauge system. The ball screw driven back gauge provides quick, accurate cuts. The operator simply inputs a dimension, and then presses enter, and the gauge automatically positions to that number. The LM Series shears are standard with four-edge, high carbon, high chrome top and bottom blades, independent, self-leveling hold down feet with neoprene inserts, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs. To enhance productivity, optional equipment available for the machines. The LM1010, LM1210 also have available an air operated sheet support system. This system is available as Rear Return only: System-R drops the supported material to the rear of the machine OPTIONAL ITEMS:

  • Wired for CSA Canadian Electrical Standard: $CALL
  • 83800: Squaring Arm Five Foot with Dual Inlaid Inch/Metric Scale: $CALL
  • 83805: Squaring Arm Ten Foot with dual Inlaid Inch/Metric Scale: $CALL
  • 83815: Additional Flip-up Stops for Squaring Arm (each): $CALL
  • 83820: Front Support Arms Pair: $CALL
  • 83825: T-Slotted Table with Two Front Support Arms with Inlaid Inch/Metric Scales: $CALL
  • 83830: Additional Flip-up Stops for T-Slotted Support Arms and Table (each): $CALL
  • 83835: Power Back-gauge 30-Inch Travel: $CALL
  • 83840: Protractor Attachment: $CALL
  • 83885: Work Shadow Light LM Series: $CALL
  • 83895: Digital Readout for 2x Back-gauge System: $CALL
  • 83890: Stroke Counter (Electro-Mechanical): $CALL
  • 83935: LM1010 High Carbon High Chrome 4 Edge per set: $CALL
  • Increased Cutting Speeds (Please consult factory)

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 3 YEAR – Limited


Stock Number83400
Maximum shearing capacity, Mild Steel10 gauge
Maximum shearing capacity, Stainless Steel14 gauge
Maximum cutting length121"
Back gauge range30" (2X)
Strokes per minute, full length35
Number of hold down feet16
Motor - 230/460V, 3-Phase, 60Hz12.5 HP
Dimensions, less gauges (LxWxH)145" x 39" x 59.5"
Floor space, gauges in position145" x 78" x 60"
Shipping Weight:9,400 lbs.
