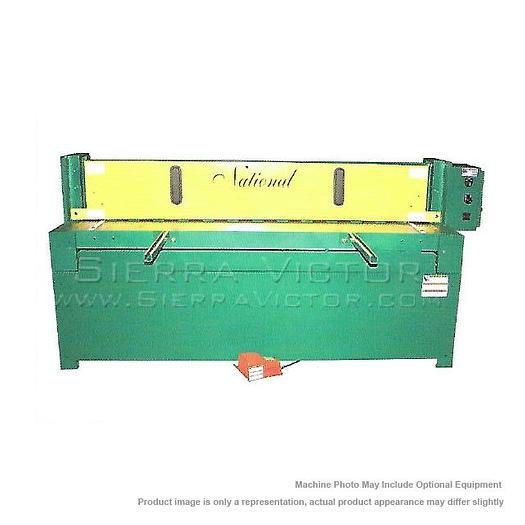

NATIONAL Mechanical Shear NM810

NATIONAL Mechanical Shear NM810


orCall 386-304-3720


Please note: many products ship straight from manufacturer NATIONAL 8' (97") x 10 ga Mechanical Shear NM810 These powerful Mechanical Shears are all USA made. They offer rugged welded construction, inch-bed scales, accurate table side gauges, hold-down finger guard with non-marring urethane, positive spring actuation and high carbon, high chrome long-life tool steel blades. The upper and lower blades are (4) four cutting blades and are interchangeable. Non-metallic gibs are maintenance free with self-lubricating bearings, continuous-cycle, single cycle and jog for different needs. Our shears also offer a fully guarded safety foot switch, quiet operation and low power consumption Standard high carbon high chromium blades All Steel Construction LIFETINE WARRANTY AGAINST BREAKAGE ON CUTTERHEAD, TABLE HOLDDOWN AND SIDE PANELS LIFETIME WARRANTY AGAINST BREAKAGE ON ALL STEEL MACHINES MADE IN USA

STANDARD EQUIPMENT: Front Support Arms Manual Rear Operated Sliding backgauge Worklight OPTIONAL ITEMS- CALL FOR PRICE: 60” Squaring arm

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



Stock NumberNM810
Stainless Steel14 Gauge / 2mm
Strokes Per MinuteApprox. 40
Cutting Length97"/2464 mm
Motor7.5 hp 208 v, 240 v, 460 v, 3 phase
Floor Space w/ Gauges117" x 89" x 53" (2972x2260x1346)
Floor Space w/o Gauges117" x 28" x 53" (2972x2260x1346)
Shipping Weight6,850 lbs (3107 kg)
