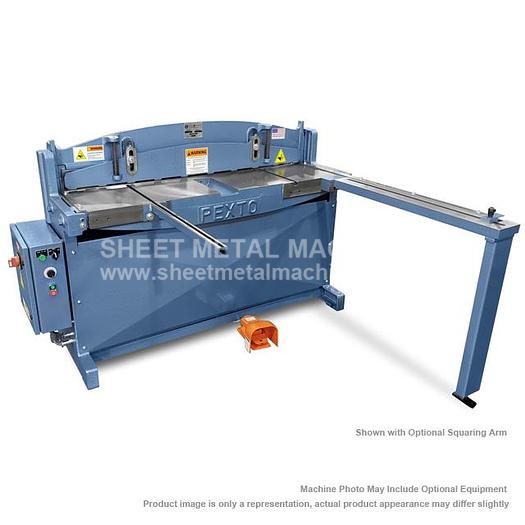

ROPER WHITNEY Hydraulic Squaring Shear PH-52

ROPER WHITNEY Hydraulic Squaring Shear PH-52

$9,400

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ROPER WHITNEY 52" x 16 gauge Hydraulic Squaring Shear PH-52


PART# 191310521 (230V/3PH) $9,400

PART# 191410521 (460V/3PH)  $9,400

PART# 191210521 (230V/1PH) $9,925


PEXTO Power squaring shears provide features designed for shearing efficiently and accurately equal the demands of present day productivity. Both the air and hydraulically operated models have built-in ruggedness that will make them last for years of normal use. The shears offer triple-action shearing which includes relief on both edges of both the fixed and moving blades. The blade design eliminates blade-to-blade friction, provides "bite" to minimize sheet movement under shearing stress and produces double penetration in the cutting action. The shears will handle a 52" sheet. The PEXTO PA452 air shear combines all of the standard features of the 152K foot shear with the added convenience of air operation. The PA52 utilize heavy-duty, tie-rod pneumatic cylinders, which provide up to 40 strokes per minute in capacity materials. PEXTO's PH52 and PH452 feature compact, fully-integrated, hydraulically powered units that are ideal for many light gauge shearing application. PEXTO hydraulic power shears feature fast, smooth, oil-cushioned action. Both moving and fixed blades are shearing blades of Hi-speed steel. One piece cast shear bed is recessed for easy sheet handling. For Other Voltages available and Delivery MADE IN USA


OPTIONAL ITEMS: PART #350700193 Hi-Speed Replacement Blade (Upper & lower blades are identical - 16 lbs. shipping weight ): $345 PART #262006900 4 Foot Squaring Arm: $850

Specifications

ManufacturerRoper Whitney
ModelPH-52
ConditionNew
Stock Number191310521
Operation typeHydraulic
Maximum Shearing Capacity, Mild Steel16 ga.
Maximum Shearing Capacity, Stainless Steel20 ga.
Maximum Cutting Length52"
Back Gauge Range30"
Front Gauge Range37"
Standard Motor2 HP, 230V/3-phase (other options: 1800 RPM 230V/1-phase , 460V/3-phase)
Floor Space, Gauges in Position66" x 76" x 42"
Dimensions72" x 48" x 36"
Weight1,350 lbs.
