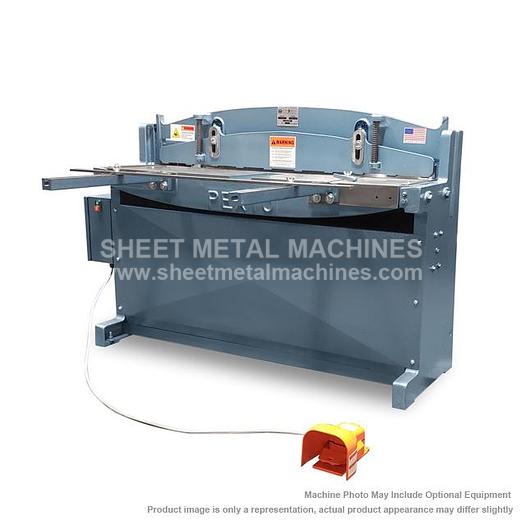

ROPER WHITNEY 230V/1PH Hydraulic Squaring Shear PH-52

ROPER WHITNEY 230V/1PH Hydraulic Squaring Shear PH-52

$19,502

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ROPER WHITNEY 230V/1PH Hydraulic Squaring Shear PH-52 ITEM: 52" x 16 ga. Hydraulic Squaring Shear MANUFACTURER: ROPER WHITNEY MODEL: PH-52 PART# 191210521 PEXTO Power squaring shears provide features designed for shearing efficiently and accurately equal the demands of present day productivity. Both the air and hydraulically operated models have built-in ruggedness that will make them last for years of normal use. The shears offer triple-action shearing which includes relief on both edges of both the fixed and moving blades. The blade design eliminates blade-to-blade friction, provides "bite" to minimize sheet movement under shearing stress and produces double penetration in the cutting action. The shears will handle a 52" sheet. The PEXTO PA452 air shear combines all of the standard features of the 152K foot shear with the added convenience of air operation. The PA52 utilize heavy-duty, tie-rod pneumatic cylinders, which provide up to 40 strokes per minute in capacity materials. PEXTO's PH52 and PH452 feature compact, fully-integrated, hydraulically powered units that are ideal for many light gauge shearing application. PEXTO hydraulic power shears feature fast, smooth, oil-cushioned action. Both moving and fixed blades are shearing blades of Hi-speed steel. One piece cast shear bed is recessed for easy sheet handling. For Other Voltages available and Delivery MADE IN USA PART # ITEM 350700193 Hi-Speed Replacement Blade ( Upper & lower blades are identical - 16 lbs. shipping weight ): $348 262006900 4 Foot Squaring Arm: $851

Specifications

ManufacturerRoper Whitney
ModelNO. PH-52
ConditionNew
Stock NumberPH-52
Catalog No.191210521
Operation typeHydraulic
Maximum Shearing Capacity, Mild Steel16 ga.
Maximum Shearing Capacity, Stainless Steel20 ga.
Maximum Cutting Length52"
Back Gauge Range30"
Front Gauge Range37"
Standard Motor2 HP, 1800 RPM, 230V/1-phase
Floor Space, Gauges in Position66" x 76" x 42"
Dimensions72" x 48" x 36"
Weight1,350 lbs.
