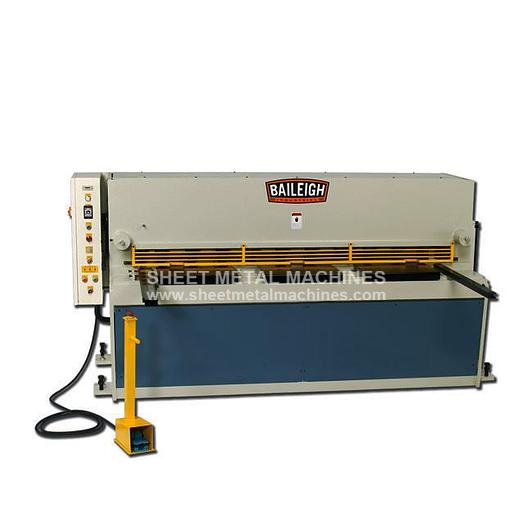

BAILEIGH Heavy Duty Hydraulic Metal Shear SH-8008-HD

BAILEIGH Heavy Duty Hydraulic Metal Shear SH-8008-HD

$27,795

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

  • If you want ease of use, fast production, and money saving out of you next shear, then look no further that than the SH-8008-HD hydraulic metal shear from Baileigh Industrial. At 24-36 strokes per minute, production time will be increased. And it’s 8 gauge mild steel capacity will open your shop us to more jobs that you currently cannot do. The SH-8008-HD uses a powerful 15 hp motor that runs on 220 volt three phase power to shear over its entire 80” length.
  • The top carriage of the SH-8008-HD moves via a bearing system that rides in a machine ground and hardened track that allows the machine to function so smoothly and it also dramatically increases blade life. The Blades on the SH-8008-HD are also reversible and can be resharpened for dramatically improved life. There are 12 hydraulic hold downs that securely hold the material and prevent it from lifting when shearing the sheet metal. The hold downs also extend blade life and prevent unnecessary upper carriage stress.
  • To operate the SH-8008-HD hydraulic metal shear a foot pedal controls the shear motion. This metal shear has a function that allows the operator to jog, complete one cycle, or have the machine run continuous cycles for high production of smaller parts. A shadow line positioner, back gauge and front roller tables round out the SH-8008-HD.

ITEM: 80" x 8 ga Hydraulic Metal Shear MANUFACTURER: BAILEIGH MODEL: SH-8008-HD

Specifications

ManufacturerBaileigh Industrial
ModelSH-8008-HD
ConditionNew
Stock NumberSH-8008-HD
Back Gauge Length23.62"
Shear Length80"
Motor15 HP
Thickness (SS)8 ga. (12 ga.)
Strokes Per Minute24 – 36
Front Gauge Length39.37"
Blade Angle1/2° – 2° Adjustable
Blade Gap AdjustmentManual, Lever Acuated
Power220V / 3-phase
Minimum Material Thickness24 ga
Shipping Dimensions130" x 48" x 65"
Shipping Weight7,260 lbs.
