POWERMATIC 511 Panel Saw 3HP 1PH 115V 1510007

POWERMATIC 511 Panel Saw 3HP 1PH 115V 1510007

$5,499.99

orCall 386-304-3720

Description

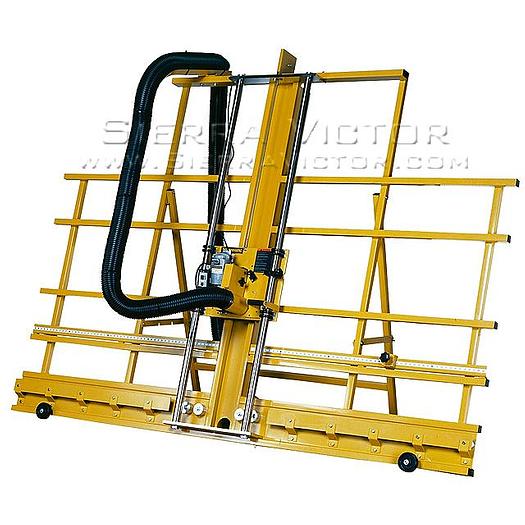

Please note: many products ship straight from manufacturer POWERMATIC 511 Panel Saw, 3HP 1PH 115V, 1510007 If you work with sheet goods, this 511 Vertical Panel Saw has plenty of power for the most demanding cuts. The carriage assembly is designed with eight unique guide roller assemblies allowing it to glide effortlessly along the stainless steel rails. This Vertical Panel Saw features a powerful 3HP worm-drive motor which rotates in the carriage, adding the versatility to perform rip cuts. The solid aluminum rollers with outside support bracket assure smooth feeding of stock and perfect 90° cuts every time. This saw will handle panels up to 5 feet tall. It also includes horizontal and vertical scales and casters for mobility. The true counterweight system keeps the saw carriage in the desired position when loading or unloading panels. With the innovative dual dust collection ports and nylon brush surrounding the blade, this saw provides superior dust collection from the front and the rear side of the panel. ITEM: 62" Panel Saw MANUFACTURER: POWERMATIC MODEL: 511 PART# 1510007

Specifications

ManufacturerPowermatic
Model511
ConditionNew
Stock Number1510007
STOCK#1510007
Style (Type)Vertical
Blade Diameter (In.)8
Arbor Diameter (In.)5/8
Maximum Cut Thickness (In.)1-1/2
Maximum Cross Cut Length (In.)62
Maximum Rip Length (In.)Unlimited
Dust Port Outside Diameter (In.)4
Motor Power (HP)3
Motor Phase1
Motor Voltage (V.)120 only
Motor Current (Amps)13
