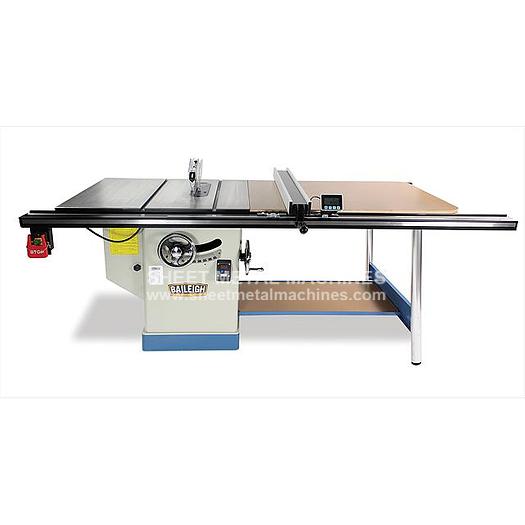

BAILEIGH Professional Cabinet Table Saw TS-1248P-52

BAILEIGH Professional Cabinet Table Saw TS-1248P-52

$3,895

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer


  • With an all-steel base attached to a massive, vibration-reducing trunnion, this industrial cabinet table saw can cut thousands of feet of board per day.
  • 52” right-side rip capacity lets you tackle long pieces of material.
  • Also available in a 36” rip capacity version.
  • 5 hp Leeson motor turns at 3600 rpm.
  • Accepts standard 12” blades with a 1” arbor that can tilt 45° to the left.
  • Run on 220-volt single-phase power, so it’ll work almost anywhere.
  • 48” x 30” work table with 52” extensions.
  • Both the industrial cabinet table saw and its extensions are made from precision-ground cast iron.
  • Table surface will stay square because of webbed or criss-cross design on the bottom that meshes into the base.
  • The tabletop won’t warp in spite of heat and moisture.
  • Smoothly finished table allows wood to slide without resistance. There’s no unevenness to compromise the accuracy of your cut.
  • You can polish the cast-iron table up and restore the original shine even after years of hard use.
  • Rip fence made of heavy UMHW plastic that you can cheaply replace if you cut into it.
  • Rip fence incorporates a digital readout (DRO) for rip capacity.
  • Just “zero” the DRO at the blade to get a perfect, repeatable length every time.
  • Steel handwheels, for adjusting blade height and miter angle, are located on the base.
  • Rack and pinion mechanism makes it easy to move the blade up and down.
  • Comes with a simple miter gauge on the tabletop and DRO for the bevel angle on the base to help with repeatability.
  • Massive steel trunnion is attached to the base, so the machine won’t wobble or exceed safe noise levels.
  • Rigid all-steel base maintains accurate alignment and keeps vibrations down to a minimum.
  • Dust shroud inside the machine collects sawdust from under the blade and funnels it to the 4” port. Just hook up an extraction system.
  • CSA-approved.
  • 4-piece safety blade guard with anti-kickback reverse teeth.
  • Riving knives for both dado and regular cut-through will help spread the wood and prevent pinching or twisting.
  • This professional table saw and its replacement parts are typically in stock for fast deliveries.
  • Covered by a 1-year parts warranty.
  • Our team of reps (all with hands-on machine experience) will provide lifetime technical support by phone.

ITEM: 12" Professional Cabinet Table Saw MANUFACTURER: BAILEIGH MODEL: TS-1248P-52

Specifications

ManufacturerBaileigh Industrial
ModelTS-1248P-52
ConditionNew
Stock NumberTS-1248P-52
Table Size (Length)24.4"
Table Size (Width)30.7"
Table Saw Working Table64.4" x 30.7"
Table Saw Blade Diameter12"
Table Saw RPM3600
Table Saw Arbor1"
Table Saw Cutting Height @ 90°4"
Table Saw Cutting Height @ 45°2-3/4"
Maximum Dado Diameter8"
Maximum Dado Width13/16"
Maximum Rip Cut (Right)52"
Power220V, Single Phase
Horse Power5
Length49"
Width32"
Height37"
Weight700 lbs.
