JET Deluxe Xacta Saw 3HP 1Ph 50" Rip 708675PK
JET Deluxe Xacta Saw 3HP 1Ph 50" Rip 708675PK
$2,699.99
Description

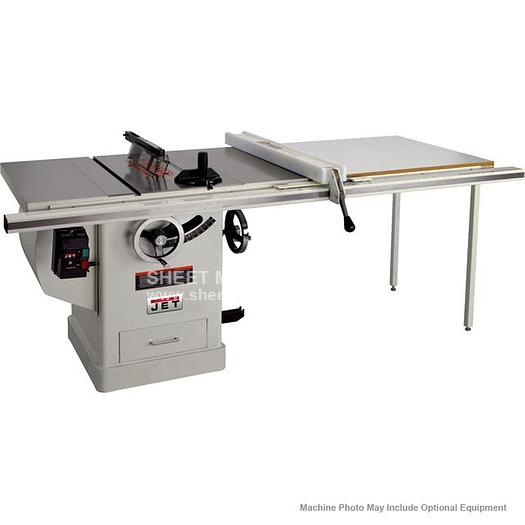

Please note: many products ship straight from manufacturer JET Deluxe Xacta Saw 3HP 1Ph 50" Rip 708675PK If you've ever wondered about what a table saw can really do, look no further. Introducing the new JET 10" DELUXE XACTA SAW. The Quick release riving knife and integrated arbor lock keeps the operator safe and more efficient. The DELUXE XACTA SAW offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, a fully shrouded blade for highly efficient dust collection. The 26" x 30" wings and deeper table gives you even more cast iron to work on. A built-in 12.5" x 18" x 4 " storage drawer sealed from the cabinet keeps your necessities within arms reach, also includes an on-board fence and miter gauge storage.
ITEM: 10" Deluxe XACTA Table Saws with Rip Fence: JTAS-10 MANUFACTURER: JET MODEL: JTAS-10XL50-1DX PART# 708675PK
Specifications
| Manufacturer | Jet |
| Model | 708675PK |
| Condition | New |
| Stock Number | 708675PK |
| STOCK# | 708675PK |
| Blade Diameter | 10" |
| Arbor Diameter | 5/8" |
| Arbor Speed (RPM) | 4,300 |
| Maximum Depth of Cut | 3" |
| Maximum Depth of Cut at 45 Degrees | 2-1/8" |
| Maximum Cross Cut | 21" |
| Maximum Rip Right of Blade | 50" |
| Maximum Rip Left of Blade | 13" |
| Table in Front of Saw Blade at Maximum Depth of Cut | 10" |
| Maximum Width of Dado | 13/16" |
| Maximum Diameter of Dado | 8" |
| Table Type | Cast Iron |
| Table Height | 34" |
| Table Size with Standard Extension (L x W) | 29" x 42" |
| Table Size without Extension (L x W) | 29" x 20" |
| Table Size without Wings (L x W) | 29" x 20" |
| Dust Port Outside Diameter | 4" |
| Dust Collection Minimum CFM Required | 350 cu.ft/min |
| Miter Gauge Type | Deluxe |
| Motor | 3 HP, 1Ph, 230V |
| Prewired Voltage | 230V |
| Motor Current | 14.5 A |
| Dimensions (in.) | 38 x 36 x 65 |
| Net Weight (lb.) | 510 |
