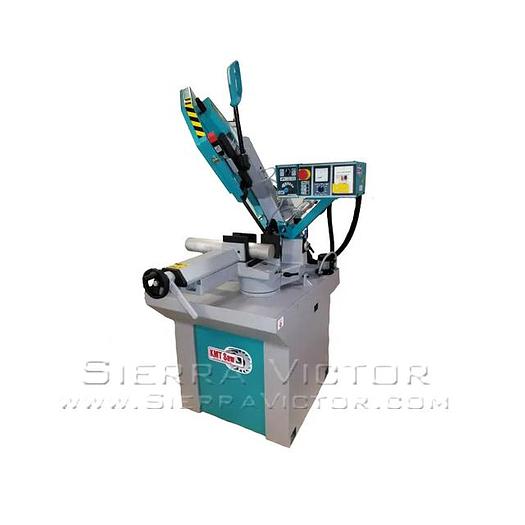

KMT SAW Autocut Bandsaw H310U

KMT SAW Autocut Bandsaw H310U

Contact us for price

orCall 386-304-3720


Please note: many products ship straight from manufacturer KMT SAW Autocut Bandsaw H310U The H310 U & H310 U-V is a gravity feed autocut bandsaw capable of mitering 60 degrees to the right. The saw is offered in two versions, 2 Speed and variable speed. The cycle start button is located in the trigger switch for safety. The blade will turn off at the end of the cut. The solenoid will hold the sawframe where lifted. The Autocut will insure that each cut is feed exactly at the same rate, eliminating the need to open and close the valve each cut. The vise is easily open and closed with handwheel, quick handle is included for repetitive cuts. Easy operator controls Large easy to read scale ensures accurate miters Carbide guides w/ rollers Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day. (see chart in pictures) STANDARD EQUIPMENT: One Bi-metal sawblade Low voltage control TEFC 3 phase drive motor Totally enclosed worm gear transmission Full Coolant System Full Blade Guarding Operators Manual Parts List/Schematics Tool kit ITEM: 10" Autocut Bandsaw MANUFACTURER: KMT SAW MODEL: H 310 U AC200 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together) AC250 5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together) AC102 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray AC103 Additional 6' connecting to AC102


ManufacturerKMT Saw
Stock NumberH310U
45°6-1/4" x 7-3/4"
60°3-3/4" x 5"
Blade Size1" H x s.035 x 9' 1" L
Vise Opening12"
Motor2 HP
Electrics2sp, 220V/3
Work Height37"
Dimensions (W x L)33" x 55"
Weight750 lbs.
