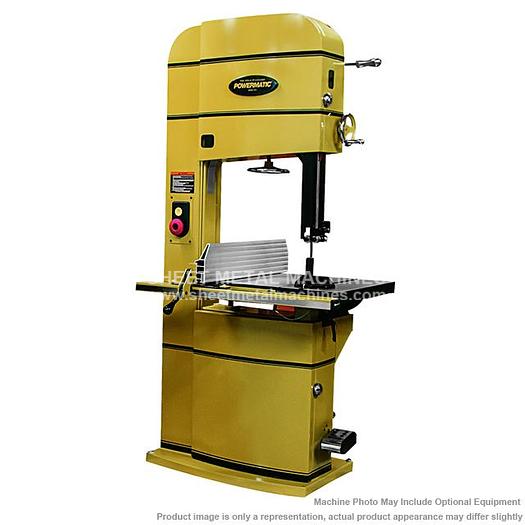

POWERMATIC PM2013B-3 Bandsaw 5HP 3PH 230/460V 1791258B

POWERMATIC PM2013B-3 Bandsaw 5HP 3PH 230/460V 1791258B


orCall 386-304-3720


Please note: many products ship straight from manufacturer POWERMATIC PM2013B 20" Bandsaw 5HP 3PH 230/460V 1791258B At Powermatic, we believe that ambition is the fuel that drives progress. Every product we engineer is born out of the same idea: How can we empower woodworkers to do more? In shops across the world, craftsmen are continually pushing the limits of their creativity, and in turn, challenging us to provide the best tools for the job. When we reimagined our line of bandsaws, we not only set out to meet their ambitions, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity and more cast iron. This bandsaw also features the legendary quality, precision and attention to detail that has been helping woodworkers expand their ambition for more than ninety years. Exclusive Powermatic T-Square style Accu-Fence maximizes accuracy and safety The Accu-Fence has complete adjustability for aligning to blade and squaring to table Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces Positive locking cam with pressure adjustment Oversized side plate can be used in the horizontal or vertical position Solid steel resaw post for optimum rigidity Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is de-tensioned (patent pending) Heavy duty upper wheel support and tracking mechanism for smooth operation Solid cast iron upper and lower wheels create the momentum needed for heavy resaw High end blade guides with tool less adjustment provide stability, increasing cut accuracy Four sided blade guard for optimum protection Foot brake with magnetic switch interrupt provides user with hands free stopping option Magnetic switch protects the motor from harm due to potential electrical supply issues Heavy-duty 5 horsepower motor provides power needed for all projects

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 5 YEAR (for Private Use) / 2 YEAR (for Commercial Use)


Stock Number1791258B
Cutting Capacity Width20"
Cutting Capacity Height18"
Blade Length170"
Table Size (LxW)24" x 27"
Blade Speed2300/4400 SFPM
Minimum Saw Blade Width1/4"
Table Height at 90º36"
Table Tilt10° left, 45° right
Miter Gauge Positive Stops45, 90
Dust Collection Minimum CFM Required600 CFM
Dust Port Outer Diameter4"
Motor5 HP, 3 Ph
Motor Voltage230 / 460V
Prewired Voltage230V
Motor Current15/7.5 Amps
Dimensions ( L / W / H ) (in.)
Net Weight ( lb. )
