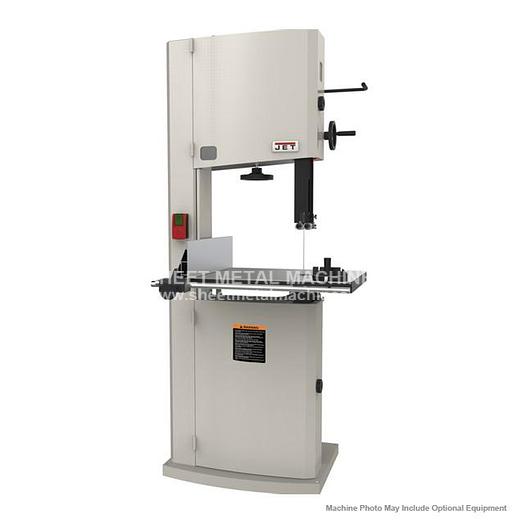

JET JWBS-18-3 Steel Frame Bandsaw 3HP 230V 714750

JET JWBS-18-3 Steel Frame Bandsaw 3HP 230V 714750


orCall 386-304-3720


Please note: many products ship straight from manufacturer JET JWBS-18-3, 18" Bandsaw, 3HP, 230V, 714750 Designed to perform, the JET 18” bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 18” steel frame bandsaw is engineered to build great projects through superior performance.


Stock Number714750
Band Saw Size/Wheel Diameter (In.)18-1/2
Cutting Capacity Width (In.)18
Cutting Capacity Height (In.)16
Blade Length (In.)150
Blade Speed (SFPM)2300/3800
Table Size (L x W) (In.)27-1/4 x 20 x 1-5/8
Blade Width (In.)3/4" x 6TPI
Maximum Saw Blade Width (In.)1-1/4
Minimum Saw Blade Width (In.)1/8
Table Tilt (Deg.)-5, 45
Table Height from Floor (In.)37
Dust Collection Minimum CFM Required (CFM)400
Dust Port Outside Diameter (In.)4 (x2)
Motor Power (HP)3
Motor Phase (PH)1
Motor Voltage (V)230 only
Motor Amps12
Recommended Circuit Size (Amps.)30
