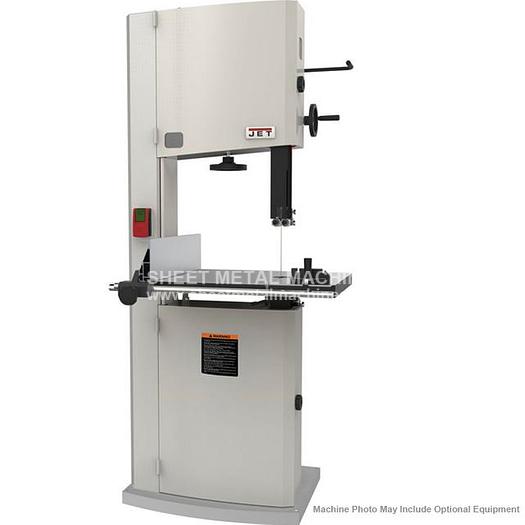

JET JWBS-18 Steel Frame Bandsaw 1-3/4HP 115/230V 714700

JET JWBS-18 Steel Frame Bandsaw 1-3/4HP 115/230V 714700


orCall 386-304-3720


Please note: many products ship straight from manufacturer JET JWBS-18, 18" Bandsaw, 1-3/4HP, 115/230V, 714700 Designed to perform, the JET 18” bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 18” steel frame bandsaw is engineered to build great projects through superior performance.


Stock Number714700
Band Saw Size/Wheel Diameter (In.)18-1/2
Cutting Capacity Width (In.)18
Cutting Capacity Height (In.)16
Blade Length (In.)150
Blade Speed (SFPM)2300/3800
Table Size (L x W) (In.)27-1/4 x 20 x 1-5/8
Blade Width (In.)3/4" x 6TPI
Maximum Saw Blade Width (In.)1-1/4
Minimum Saw Blade Width (In.)1/8
Table Tilt (Deg.)-5, 45
Table Height from Floor (In.)37
Dust Collection Minimum CFM Required (CFM)400
Dust Port Outside Diameter (In.)4 (x2)
Motor Power (HP)1-3/4
Motor Phase (PH)1
Motor Voltage (V)115/230
Prewired Voltage (V)115
Motor Amps15/7.5
Recommended Circuit Size (Amps.)20
