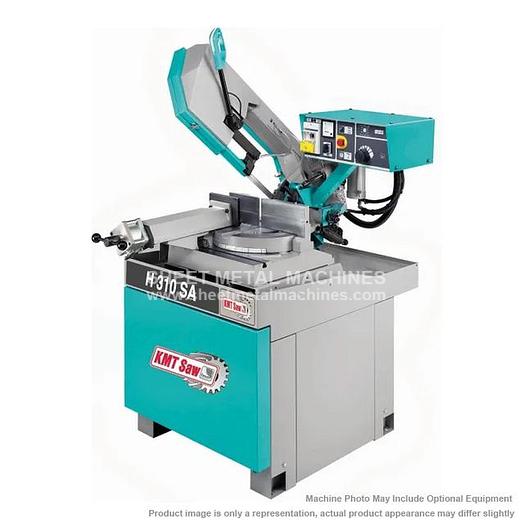

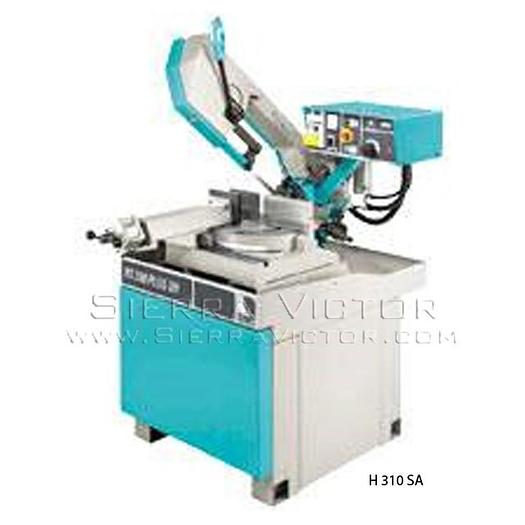

KMT SAW Semi-Automatic AutoCut Mitering Band Saws H 310 SA

KMT SAW Semi-Automatic AutoCut Mitering Band Saws H 310 SA

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer KMT SAW 10" Hydraulic Semi- Automatic Mitering Band Saws H310SA

  • This fully hydraulic Semi-Automatic bandsaw offers increased productivity with full cycle operation. Mitering 45 to the left and 60 degrees to the right.
  • With the push of the start button or a click of the optional footswitch the vise will clamp the saw head will make the cut, the head will return to just above the material and the vise will unclamp.
  • Standard features of the H 310 SA include, variable speed, easy operator controls, vise mounted in a T slot with quick handle for moving to either side of the cut, amp meter.
  • Material sensor, saw will rapid down until it touches mate-rial then go into controlled rate. After cut is complete the saw head will lift to just above the material ready for the next cut.
  • Carbide guides w/ backup rollers


STANDARD EQUIPMENT:

  • One Bi-metal saw blade
  • Low voltage control
  • TEFC 3 phase drive motor
  • Totally enclosed worm gear transmission
  • Full Coolant System
  • Full Blade Guarding
  • Operators Manual Parts List/Schematics
  • Tool kit


OPTIONAL ITEMS: CALL FOR PRICE

  • AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
  • AC250: 5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together)
  • AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
  • AC103: Additional 6' connecting to AC102


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts


Specifications

ManufacturerKMT Saw
ModelH 310 SA
ConditionNew
Stock NumberH 310 SA
Available Electricals208V, 230V, 460V / 3 phase (Please specify)
Blade Speeds60-360 fpm
Blade SizeH 1" x s.035" x L 9' 1"
Material Working Height (from floor to table top)37"
Vise Opening12"
Machine Weight1,000 lbs.
Machine Floor DimensionsW 48" x L 56"
Blade Drive HP2
0 Degrees - Round10"
0 Degrees - square9-1/2"
0 Degrees - rectangle7" x 11"
45 Degrees Right - Round8-1/4"
45 Degrees Right - square7-1/2"
45 Degrees Right - rectangle6-1/4" x 7-3/4"
45 Degrees Left - round17"
45 Degrees Left - square6-1/4"
45 Degrees Left - rectangle3-3/4" x 7"
60 Degrees Right - round5-1/4"
60 Degrees Right - square4-1/4"
60 Degrees Right - rectangle3-3/4" x 5"
