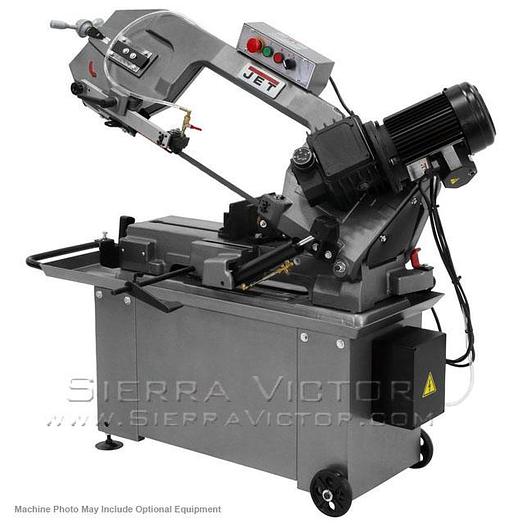

JET HBS-814GH Horizontal Geared Head Bandsaw 414466

JET HBS-814GH Horizontal Geared Head Bandsaw 414466


orCall 386-304-3720


Please note: many products ship straight from manufacturer JET HBS-814GH, 8" x 14" Horizontal Geared Head Bandsaw, 414466 The JET HBS-814GH was engineered with the operator in mind. An easy access control panel and heavy-duty geared head transmission for quick speed change means productivity never slows. Like every JET machine we manufacture, professionals know they can rely on this saw when the project is on the line. Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels Heavy-duty geared head transmission for quick speed changes Fully adjustable hydraulic downfeed system Easily accessible saw control panel Quick-positioning vise with fully adjustable jaws, swivels to 45° Built-in, self propelled blade brush extends blade life Wheels permit easy storage and movement Coolant system Adjustable material stop 3/4" Bi-Metal blade


Stock Number414466
Cutting Capacity (W x D) (In.)8 x 14
Round at 90° (in.)8
Round at 45° (in.)6-1/2
Rectangle at 90° (in.)14 x 8 / 2 x 14
Rectangle at 45° (in.)6-1/2 (H) x 6 (W) & 2 (H) x 7 (W)
Throat Depth (in.)8
Vise Swivels45°
Blade Size (in.)3/4 x .035 x 97
Blade Speeds (SFPM)135, 197, 256
Blade Wheel Diameter (in.)12
Bed Height (in.)26
Motor1HP, 115/230V, 1Ph, Prewired 115V
Overall Dimensions (in.)51-1/2 x 18-1/8 x 44
Weight (lbs.)287
