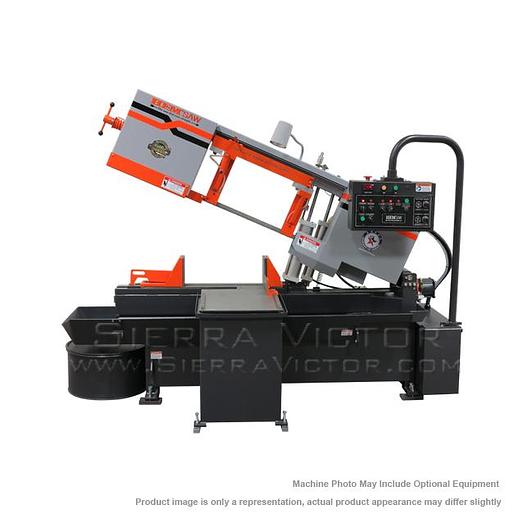

HE&M H105M Horizontal Pivot Bandsaw

HE&M H105M Horizontal Pivot Bandsaw

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer HE&M 14 inch Horizontal Pivot Bandsaw H105M

The H105M model includes a 7½ HP motor and a 1¼” blade and will produce straight cuts fast. This saw is perfect for cutting solids and structural shapes. Adjustable clamping pressure and accurate arm control for straight cuts and long blade life.

  • Easy View Console - Semi-Automatic Control
  • 24" Solid Discharge Table - Bolts to Saw
  • Vise - Adjustable Main
  • Adjustable Clamping Force
  • Hold Down Fixture
  • Guide Arm - Manual Adjustment
  • Variable Blade Speed w/ LED Readout
  • Carbide Blade Guides
  • Manual Blade Tension
  • Adjustable Feed Rate
  • Adjustable Cutting Pressure
  • Coolant System - Flood w/ Wash-Down Hose
  • Blade Brush
  • Broken Blade Function
  • Safety Guards
  • 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
  • 85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator)


OPTIONAL ITEMS:

  • Top Clamp - Reduced Capacity Main Vise
  • Vise - Outboard Powered on Discharge
  • Chip/Swarf Removal System - Chip Auger
  • Passive "Cut Watcher" System
  • Light Clamping Pressure
  • Air Powered Blade Tension
  • Spray Mist Lubrication
  • Single-Phase Voltage
  • 5' Idle Roller Stock Table
  • 10' Idle Roller Stock Table


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerHE&M
ModelH105M
ConditionNew
Stock NumberH105M
Capacity - Rectangular0-16" W x 0-14" H
Capacity - Square0-14" (Square)
Capacity - Round0-14" (Diameter)
Bar-feedN/A
Hydraulic MotorN/A
Minimum Air Requirement85 PSI, 4-6 CFM (Equipped w/ Air Filter/Lubricator)
Operation TypeSemi-Automatic
Power SourceAir
Blade TypeBandsaw
Blade Size15' 0" L x 1.25" H x .042"
Cantilever
Bandsaw Blade SpeedN/A
Bundle Cut?Yes
WeightN/A
