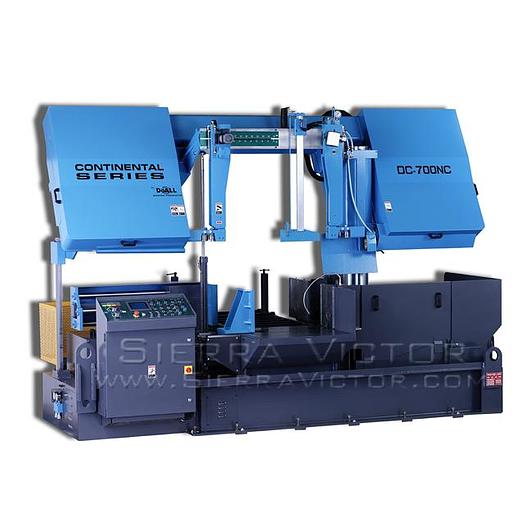

DOALL Production Bandsaw DC-700NC

DOALL Production Bandsaw DC-700NC
Contact us for price
Description
Please note: many products ship straight from manufacturer DOALL Production Bandsaw DC-700NC ITEM: 27" Production Bandsaw MANUFACTURER: DoALL MODEL: DC-700NC The DC-700NC Continental Series high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. The DC-700NC offers automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life. STANDARD EQUIPMENT: PLC control for all electric and hydraulic functions Infinitely variable speed controlled by VFD Hydraulic retractable shuttle vise material indexer Rapid and creep speed index vise control Multi-step full stroke vises with split front vise and variable vise pressure control Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers Power driven, coolant flushed, blade cleaning wire brush Flushing hose and auxiliary coolant nozzles Hydraulic blade tension Automatic chip conveyor Blade breakage/stall motion detector shut off switch Band door interlocks Work light One 6-1/2 ft. (2M) conveyor Set up tools and tool box Complimentary DoALL Cutting Fluids package One DoALL bi-metal saw blade Instruction and parts manuals on CD or USB data stick Additional 6-1/2 ft. (2M) Conveyor
Specifications
Manufacturer | DoALL |
Model | DC-700NC |
Condition | New |
Stock Number | DC-700NC |
Rectangle: (W x H) | 31" x 27" (800mm x 700mm) |
Minimum: (W x H) | 13-3/8" x 7-5/8" (340x195mm) |
Band Saw Blade (L x W x Gage) | 325" x 2-5/8" x 0.063" (8250x63x1.6mm) |
Band Speed | 52 - 275 SFPM |
Band Drive | 15 HP (11.1kW) |
Hydraulic Pump | 3 HP (2kW) |
Hydraulic Tank Capacity | 34 Gal. (130 Liters) |
Coolant Pump | 1/4 hp (0.2kW) |
Coolant Tank Capacity | 61 Gal. (230 Liters) |
Multiple | 141.73" (3600mm) |
Material Pass Line Height | 31-1/2" (800mm) |
Floor Space Required | 154" x 89" x 90" (3910x2240x2300mm) |
Machine Weight | 15,650 lbs. (7099kg) |
