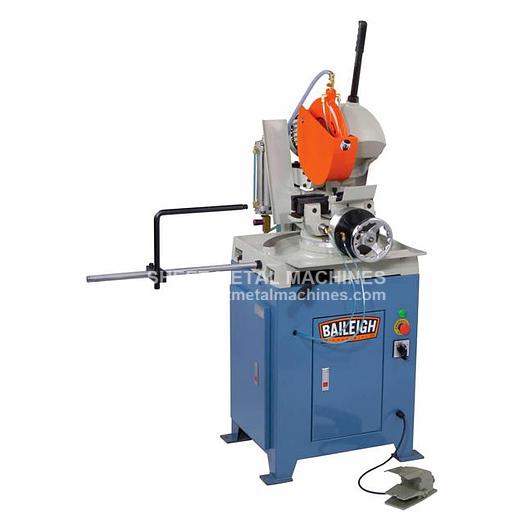

BAILEIGH Chop Saw CS-275SA

BAILEIGH Chop Saw CS-275SA

$5,795

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer BAILEIGH Chop Saw CS-275SA


  • This semi-automatic cold saw will save time while making large amounts of pristine cuts. Built to last, it offers a cast iron head and base, a pneumatic vise, and a flood coolant system.
  • Accepts an 11” blade.
  • Maximum capacity of 2.75” round tube at 90°.
  • Cuts thin-, medium-, or thick-walled pipe, as well as tubing, extrusions, and solid bar stock.
  • Miters 45° right and 90° left, perfect for slotting applications.
  • You can switch between 2 operating speeds, 60 and 120 rpm, depending on your application.
  • 3 hp motor requires 220-volt 3-phase power to run the direct-drive blade.
  • Design adds semi-automatic technology to our CS-275M cold saw, one of the best manual production saws available.
  • Heavy-duty cast iron head minimizes vibrations to give you high-quality cuts with smooth edges.
  • Head features all-metal gears that are ground and hardened for long life.
  • Backlash adjustment lets you reduce play in the gears to maintain tight tolerances throughout many years of use.
  • American-style self-centering vise keeps the material in the right position to the blade for perfect cuts.
  • Pneumatic or air-powered vise spares you the trouble of locking the material in by hand.
  • You can operate this circular cold saw in manual mode (pull down the blade head by hand) or semi-automatic mode.
  • Easy to use: just put your material in the vise and push the foot pedal to clamp it. The blade will automatically start, lower, and cut.
  • Blade will shut off and the head automatically rises back to the top once the cut is complete, eliminating the effort of manually returning it.
  • Stop rodconveniently allows you to cut repeatable lengths.
  • Rigid cast iron base reduces vibrations for accurate cutting and makes both the blades and the saw itself last longer.
  • Sturdy folded steel stand stabilizes this circular saw and adds to its structural strength.
  • Flood coolant system lubricates the blade for clean cutting and mirror-smooth edges.
  • Integrated coolant system saves you money by extending the lifespan of cold saw blades.
  • We stock replacement parts at our Wisconsin headquarters so we can ship them out quickly.
  • This chop saw comes covered by a 1-year parts warranty.
  • Lifetime technical support by phone means you can call our team of metalworking experts any time you need help.

ITEM: 11" Semi-Automatic Cold Saw MANUFACTURER: BAILEIGH MODEL: CS-275SA

Specifications

ManufacturerBaileigh Industrial
ModelCS-275SA
ConditionNew
Stock NumberCS-275SA
Country of ManufactureTaiwan
Max. Blade Diameter11"
OperationSemi-Automatic
Head Miter90° Slotting, 45° Left / 45° Right
Round Solid at 45°1.5"
Square Tube at 45°2.165" x 2.165"
Round Tube at 45°2.25"
Rectangle Tube at 45°2.165" x 2.25"
Round Solid at 90°1.5"
Rectangle Tube at 90°2.75" x 2.9"
Square Tube at 90°2.75" x 2.75"
Round Tube at 90°2.75"
Coolant SystemYes
Slotting CapableYes
Vice StyleDual Action, Self Centering
Max. Vice Opening4"
Head StylePivot
Arbor Size1.26"
Motor3.0 / 1.5 hp
Blade SpeedTwo Speeds, 60 / 120 (rpm)
Power220V / 3-phase
Shipping Dimensions60" x 44" x 48"
Shipping Weight788 lbs.
