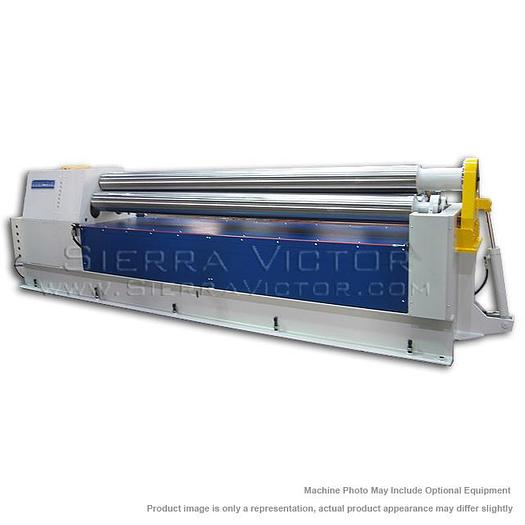

BIRMINGHAM Double Pinch Hydraulic Plate Bending Roll RH-1004

BIRMINGHAM Double Pinch Hydraulic Plate Bending Roll RH-1004

Contact us for price

orCall 386-304-3720


Please note: many products ship straight from manufacturer BIRMINGHAM 10' x 7 ga Double Pinch Hydraulic Plate Bending Roll RH-1004 Hydraulic circuit features overload protection, and is fully enclosed for low noise and leak-proof Three rolls are independently driven by hydraulic power Each lower roll is hydraulically adjusted for pinch Each lower rolls is equipped with a handy LED indicator, allowing operator to identify its reference position Hydraulic pinch adjustment is easily made by reading on the LED indicator Portable controller around the machine provides convenience in rolls forward/reverse/pinch adjustment All rolls are manufactured of high quality allow steel, and hardened to HRC55° All rolls employ high quality spherical roller bearings with sealed to prevent dusts invasion MADE IN TAIWAN OPTIONAL ITEMS - CALL FOR PRICE: Cone bending attachment Wireless remote control unit (instead of portable controller) CE Conformity machine Infinitely variable roll rotation speed Overhead support device Hydraulically operated side support device


Stock NumberRH-1004
Mild Steel Capacity120" (10 ft) x 7 ga (3050mm x 4.5mm)
Roll Diameter205mm (8.1")
Motor3 HP
Roll Speed2.25 m/min
Shipping Crate Size201" x 44" x 65" (5100 x 1100 x 1650mm)
Shipping Weight10,472 lbs. (4,750 kgs)
