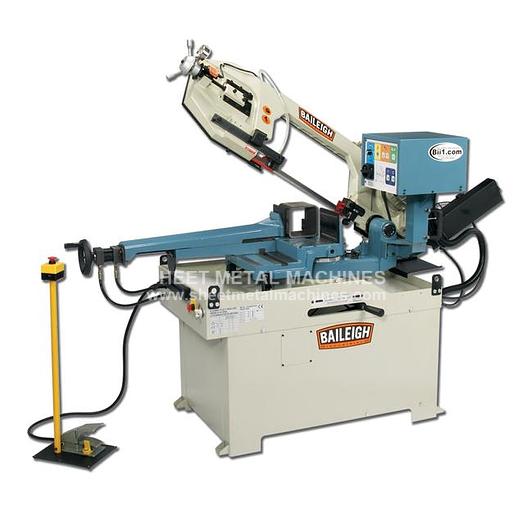

BAILEIGH Gear Driven Dual Miter Band Saw BS-350SA

BAILEIGH Gear Driven Dual Miter Band Saw BS-350SA

$8,724

orCall 386-304-3720

Description

  • Please note: many products ship straight from manufacturer BAILEIGH Gear Driven Dual Miter Band Saw BS-350SA Cast iron and steel construction—plus a hydraulic system to increase productivity. This semi-automatic band saw is an investment that will pay off for years to come.
  • 10.5” OD round capacity at 90°.
  • Accepts a standard 1” blade (included).
  • 3 hp motor runs on 220-volt single-phase power.
  • Adjust the variable speed control from 66 to 280 fpm to deliver the best possible cut for a given material and make blades last longer.
  • Driven by an AC inverter to maintain a high standard of reliability.
  • Head miters 60° right and 45° left.
  • Cast iron head and bow, machined to exacting tolerances, keep vibrations to a minimum and produce accurate cuts.
  • Industrial grade hydraulic system raises and lowers the head. It also clamps and releases the vise.
  • Patented blade tension device lets you easily check the blade tension by looking at the liquid-filled gauge.
  • Precision ball bearing guides move the blade as close to the material as possible to make clean, accurate cuts.
  • Direct-drive gearbox saves you the trouble of adjusting pulleys and replacing broken belts.
  • Start and stop the machine with the convenient foot pedal and change settings on the control panel.
  • Electro-welded steel plate framework maintains accuracy and prevents the machine from wobbling.
  • Comes standard with a large-capacity flood coolant system that washes away metal shavings and prolongs blade life.
  • Covered by a 1-year parts warranty.
  • We typically keep both the metal-cutting band saw and its replacement parts in stock for fast deliveries.
  • Includes lifetime technical support by phone from Baileigh’s team of experienced reps. Call us any time you have questions or need troubleshooting.
  • Recommended for: Shops that regularly take on light production work.

ITEM: Gear Driven Dual Miter Bandsaw MANUFACTURER: BAILEIGH MODEL: BS-350SA

Specifications

ManufacturerBaileigh Industrial
ModelBS-350SA
ConditionNew
Stock NumberBS-350SA
Country of ManufactureTaiwan
Motor Hp2
ReturnHydraulic
Miter AdjustmentDual Swivel Head
Miter Angle0 – 60°, 45°L
MotorHigh Torque 1.1Kw (AC)
Capacity Round 90 x 45 x 60 x 45L10.63" x 9.45" x 6.3" x 8.28"
Capacity Rectangular 90 X 45 X 45L13.77" x 8.66" x 9.45" x 6.3" 7.3" x 4.33"
Capacity Square 90°/ 45° / 60°10.24" x 8.66" x 5.9" x 7.09"
Table Height35"
Blade GuideCarbide x Roller
Blade Speed (fpm)66–280 Variable
Descent ControlPressure Assist Hydraulic
DriveGear
Power220V / 1-phase
Dimensions L x W x H72" x 30" x 66"
Shipping Dimensions72" x 30" x 66"
Shipping Weight1,167 lbs.
