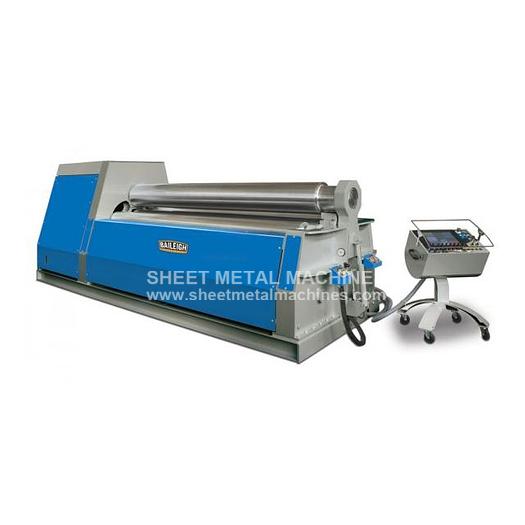

BAILEIGH Plate Bending Machine PR-10500-4CNC

BAILEIGH Plate Bending Machine PR-10500-4CNC

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer BAILEIGH Plate Bending Machine PR-10500-4CNC The PR-10500-4CNC 4 roll plate bending machine is the ultimate in production plate rolling. It has the same bones as its sister models the PR-10500-4 and PR-10500-4NC but incorporates a CNC touchscreen controller that has been specially designed for Baileigh Industrial plate rolls. When designing a CNC for a bending machine, you will encounter considerable challenges, the main one is the tolerance of the yield point of the various materials that are bent: lots of material nominally "identical" to each other, often present results bending quite different. The PR-10500-4CNC bending machine also has a CAD system that allows you to draw shapes to be bent with the Numerical Control or, if you prefer, loading them in DXF format from USB pen-drive. There is also the possibility to have a second desktop or laptops, configured with the same application, so you can run them elsewhere, and then export it to the CNC. After loading the form chosen, simply choose the type of material, previous stored in special libraries, and the computer automatically generates the program to bend it. The pre-existing system of manual programming "auto-teaching" has been maintained to ensure the total flexibility of control. Technical Feature of the CNC Programmer on the PR-10500-4CNC plate roll Amount of steps per program is virtually unlimitedAmount of saved programs is virtually unlimited Linux RTI operating system New generation mother board conforms to Rohs regulations Integrated graphical card with accelerated 3D hardware Intel Low power 2.0 GHz Dual Core CPU with lower operating temperature (optimal for industrial environments) SO-DIMM DDR Memory 1 GB Industrial range Direct connection of the LVDS display leaves VGA port open for connecting an external monitor 15” touch screen display conforms to Rohs regulations 15” TFT New Generation LCD LED DISPLAY Calculation Capacity has tripled compared to previous versions Front panel with more input/output ports: 2 USB, 1 Serial, 1 Ethernet, 2 PS2 ITEM: 122" x .55" Plate Bending Machine with CNC MANUFACTURER: BAILEIGH MODEL: PR-10500-4CNC

Specifications

ManufacturerBaileigh Industrial
ModelPR-10500-4CNC
ConditionNew
Stock NumberPR-10500-4CNC
Rolling Cap. (Mild Steel).55"
Forming Width122"
Number of Rolls4
Driven Rolls2
Top Roll Dia.13.7"
Bottom Roll Dia.13"
Slide Roll Dia.9.8"
Roll AdjustmentHydraulic
ProgrammingTouch Screen CNC System
Motor15 HP
Power480V / 3-phase
Shipping Dimensions (L/W/H)206" x 68" x 43"
Shipping Weight28,600 lbs.
