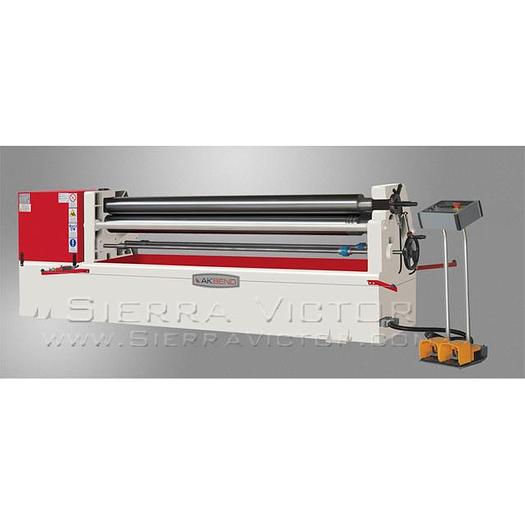

AKYAPAK 3-Roll Asymmetrical Plate Roll ASM110-10/4.0

AKYAPAK 3-Roll Asymmetrical Plate Roll ASM110-10/4.0

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer AKYAPAK 3-Roll Asymmetrical Plate Roll ASM110-10/4.0 Cast iron body Central rolls are driven by electric-motor+planetary reducer and with gear system Swivelling top roll Main motor with self-brake Cone bending device Lower and back rolls move up and down through hand wheel Separate moving control panel and foot pedal CE, ISO 9001 -2008,TSEK and TURQUM certified machine

ITEM: 3' 3-Roll Asymmetrical Plate Roll MANUFACTURER: AKYAPAK MODEL: ASM 110-10/4.0 Induction hardened rolls Motorized back roll (up and down motion) Digital display for back roll Motors in variable voltage and frequency

Specifications

ManufacturerAKYAPAK
ModelASM110-10/4.0
ConditionNew
Stock NumberASM 110-10/4.0
Working length (ft)3
Pre-Bending Thickness (in)8 ga.
Maximum thickness (in)3/16
Top roll Dia. (in - Ø)4.3
Min. Bending Dia. (in - Ø)5.9
Motor Power3 HP
Bending Speed (ft/min)14.8
Length x Width x Height (ft)6.0 x 2.8 x 3.8
Weight1,984 lbs.
