AKYAPAK 3-Roll Asymmetrical Plate Roll AS 90-12/2.5
AKYAPAK 3-Roll Asymmetrical Plate Roll AS 90-12/2.5
Contact us for price
Description

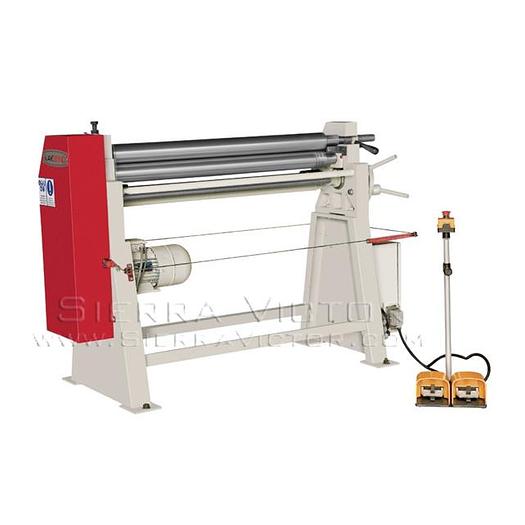

Please note: many products ship straight from manufacturer AKYAPAK 4' x 11 ga. 3-Roll Asymmetrical Plate Roll AS 90-12/2.5 Cast iron body Manual bending (by hand wheel) Swivelling top roll Cone bending device Hand wheel for up and down motions of lower and back rolls Separate moving control panel and foot pedal (when the option of electric motor purchased)
OPTIONAL ITEMS: Motorized back roll (up and down motion) Hardened rolls Digital display for back roll Body cover (panel)
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR
Specifications
| Manufacturer | AKYAPAK |
| Model | AS 90-12/2.5 |
| Condition | New |
| Stock Number | AS 90-12/2.5 |
| Working length (ft.) | 4 |
| Pre-Bending Thickness (in.) | 12 ga. |
| Maximum thickness | 11 ga. |
| Top roll Dia. (in - Ø) | 3.54" |
| Min. Bending Dia. (in - Ø) | 5.12" |
| Motor Power | 1.5 |
| Length x Width x Height (ft.) | 6.4' x 3.0' x 3.7' |
| Weight | 1,102 lbs. |
