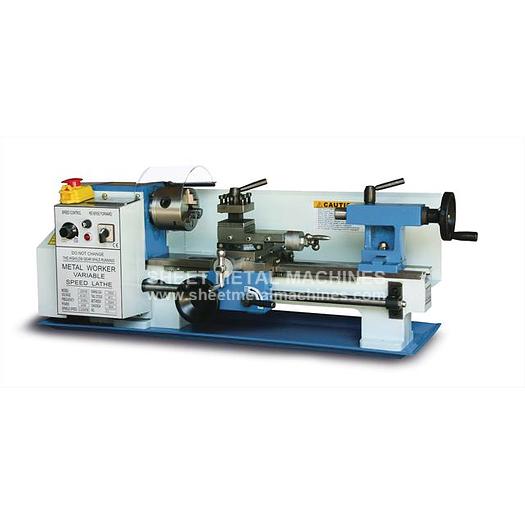

BAILEIGH Bench Top Lathe PL-714VS

BAILEIGH Bench Top Lathe PL-714VS

$1,825

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer BAILEIGH 7" x 14" Bench Top Lathe PL-714VS-V2 This 14” bed variable-speed benchtop metal lathe is accurate to .001”—a level of quality typically associated with larger models. The PL-714VS is a compact and economical choice for home garage shops.

  • Variable speed from 100 to 2,500 rpm.
  • Digital readout (DRO) shows spindle speed.
  • Runs on 110 volts, so it will work anywhere.
  • Capable of making metric or standard threads.
  • Includes 3-jaw and 4-jaw chucks to hold rounded and square materials.
  • Standard style tool post.
  • Steady rest and follow rest prevent wobbling and maintain high accuracy.
  • Splash guard helps keep your shop safe from flying debris.
  • Catch pan avoids mess when you spray coolant.
  • Baileigh lathe comes with 1-year parts warranty.
  • Replacement parts in stock for fast shipping.
  • Covered by lifetime technical support by phone from our team of knowledgeable reps



Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerBaileigh Industrial
ModelPL-714VS-V2
ConditionNew
Stock NumberPL-714VS-V2
Chuck Diameter4"
Tool Slide Travel1.378"
Spindle Accuracy.001"
Range Of Metric Threads12 - 52 T.P.I.
Spindle Bore.75"
Range Of Inch Threads12 - 52 T.P.I.
Motor3/4 HP
Spindle Speed100 - 2500 rpm
Spindle TaperMT 3
Taper Of Tailstock QuillMT 2
Max. Swing Over Bed7"
Cross Slide Travel2.559"
Distance Between Centers13.8"
Power110V / 60Hz
Shipping Weight170 lbs.
Shipping Dimensions48" x 31" x 20"
