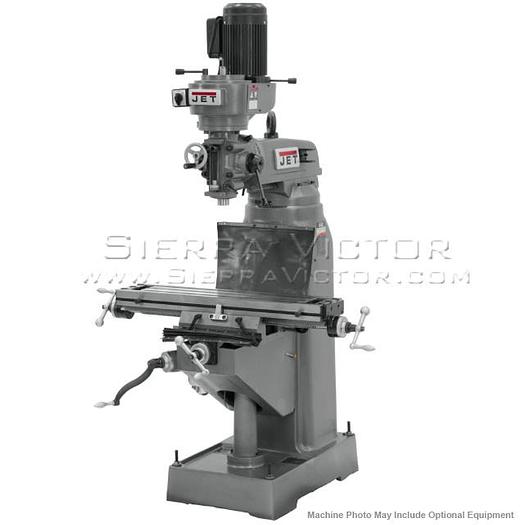

JET JVM-836-3 Step Pulley Milling Machine 230V 3Ph 690038

JET JVM-836-3 Step Pulley Milling Machine 230V 3Ph 690038

$7,699

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET JVM-836-3 Step Pulley Milling Machine 230V 3Ph, 690038 The precision bored and honed milling head, coupled with the hardened and ground 8” x 36” table ensures retention of tolerances, while locks on all moving surfaces increase user safety. The JET JVM-836 has features you've come to expect that are backed by the industry-leading JET Two Year Warranty Precision bored and honed milling head Large diameter quill is chromed High precision spindle bearings Over 10” of front to back ram travel Locks on all movable surfaces Hardened and ground precision table Head tilts left or right Graduated scale on column Precision ground dovetail ways STANDARD EQUIPMENT: One-shot lubrication system Way covers Draw bar Tool box and tools ITEM: 8" x 36" Step Pulley Milling Machine MANUFACTURER: JET MODEL: JVM-836-3 PART# 690038

Specifications

ManufacturerJet
ModelJVM-836-3
ConditionNew
Stock Number690038
Part #690038
Spindle Taper (In. x TPI)R-8
Table Size (L x W) (In.)7-7/8 x 35-3/4
Quill Diameter (In.)3-3/8
Number of Spindle Speeds10
Range of Spindle Speeds (RPM)120 - 1,550
Spindle Travel (In.)5
Head Movement (Deg.)90° R & L
Max Distance Spindle to Table (In.)13-3/4
Distance Spindle to Column (Max.) (In.)15-3/4
Distance Spindle to Column (Min.) (In.)5-1/4
Collet Capacity1/8 - 7/8
Table Longitudinal Travel (In.)22-1/4
Table Cross Travel (In.)9-1/2
Travel of Knee (In.)14
Travel of Ram (In.)10-1/2
T-Slots Number and Size (In.)3 - 5/8
T-Slot Centers (In.)2-1/2
Work Table Weight Capacity (Lbs.)500
Motor1-1/2HP, 230V Only, 3Ph
Overall Dimensions55 x 52 x 78
Net Weight1,610
