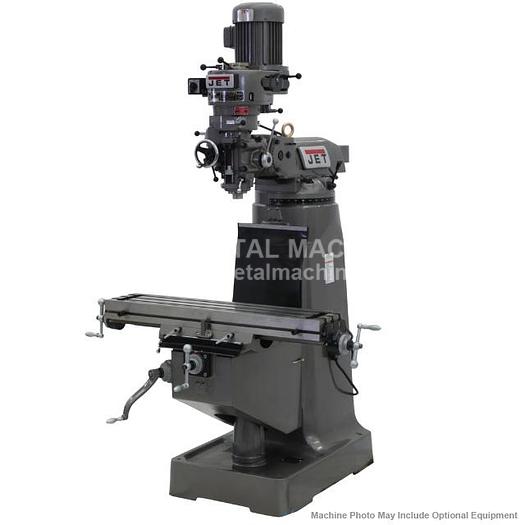

JET JTM-2 Step Pulley Milling Machine 115/230V 1Ph 690089

JET JTM-2 Step Pulley Milling Machine 115/230V 1Ph 690089

$7,999 FREE Premium 6pcs R-8 Collet Set - ends 6/30/20

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET JTM-2 Step Pulley Milling Machine 115/230V 1Ph, 690089 Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty Certified Meehanite Castings Precision bored and honed milling head Large diameter quill is chromed High precision Class 7 spindle bearings Spindle head is internally cooled Satin chrome finished dials Heavy duty splined motor drive One piece quill pinion and shaft Three stage power downfeed with automatic stop Heavy duty spindle brake Precision hardened and ground ways Standard Equipment Internal coolant tank built into base for use with coolant system (coolant pump not included) EQUIPPED WITH: Tolerance test sheet included One shot lubrication system Way covers Draw bar Tool box with tools ITEM: 9" x 42" Vertical Step Pulley Milling Machine MANUFACTURER: JET MODEL: JTM-2 PART# 690089

Specifications

ManufacturerJet
ModelJTM-2
ConditionNew
Stock Number690089
Part #690089
Spindle Taper (In. x TPI)R-8
Table Size (L x W) (In.)9 x 42
Quill Diameter (In.)3-3/8
Number of Spindle Speeds8
Range of Spindle Speeds (RPM)80 - 2,720
Quill Down Feed Rates (IPR).0015 - .003 - .006
Spindle Travel (In.)5
Head Movement (Deg.)90° R & L, 45° F & B
Max Distance Spindle to Table (In.)17-1/2
Distance Spindle to Column (Max.) (In.)19
Distance Spindle to Column (Min.) (In.)4-1/2
Collet Capacity1/8 - 7/8
Table Longitudinal Travel (In.)23-7/8
Table Cross Travel (In.)12-1/2
Travel of Knee (In.)14-1/2
Travel of Ram (In.)13-3/8
T-Slots Number and Size (In.)3 - 5/8
T-Slot Centers (In.)2-1/2
Work Table Weight Capacity (Lbs.)550
Motor2HP, 115/230V, 1Ph, Prewired 230V
Overall Dimensions (in.)57 x 64 x 82
Net Weight (lb.)2,200
