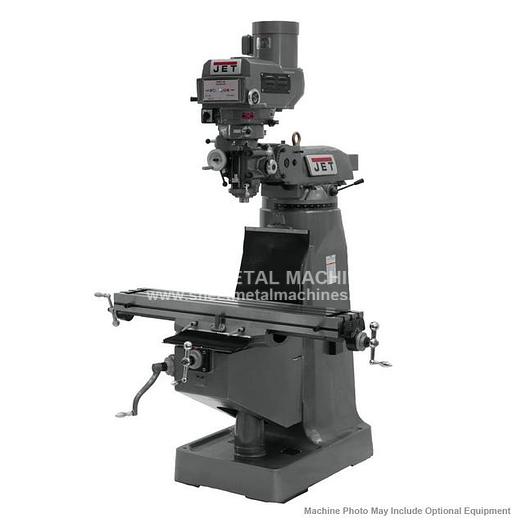

JET JTM-4VS-1 Variable Speed Vertical Milling Machine 230/460V 3Ph 690180

JET JTM-4VS-1 Variable Speed Vertical Milling Machine 230/460V 3Ph 690180

$8,999 FREE Milling Accessory Kit - ends 6/30/20

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET JTM-4VS-1 Variable Speed Vertical Milling Machine 230/460V 3Ph, 690180 Constructed using the Meehanite casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading two year full service and parts warranty Certified Meehanite Castings Precision bored and honed milling head Large diameter quill is chromed High precision Class 7 spindle bearings Chrome plated motor shaft with lower bearing support Spindle head is internally cooled Heavy duty splined motor drive One piece quill pinion and shaft Three stage power downfeed with automatic stop Heavy duty spindle brake Locks on all movable surfaces Precision hardened and ground ways and table Adjustable gibs throughout Internal coolant tank built into casting base for use with coolant system (coolant pump not included)

STANDARD EQUIPMENT: Tolerance test sheet included One shot lubrication system Way covers Draw bar Tool box with tools

ITEM: 9" x 49" Variable Speed Milling Machines MANUFACTURER: JET MODEL: JTM-4VS-1 PART# 690180

Specifications

ManufacturerJet
ModelJTM- 4VS-1
ConditionNew
Stock Number690180
Part#690180
Spindle Taper (In. x TPI)R-8
Table Size (L x W) (In.)9 x 49
Quill Diameter (In.)3-3/8
Number of Spindle SpeedsVariable
Range of Spindle Speeds (RPM)60 - 4,200
Quill Down Feed Rates (IPR).0015 - .003 - .006
Spindle Travel (In.)5
Head Movement (Deg.)90° R & L, 45° F & B
Max Distance Spindle to Table (In.)17-1/2
Distance Spindle to Column (Max.) (In.)19
Distance Spindle to Column (Min.) (In.)4-1/2
Collet Capacity1/8 - 7/8
Table Longitudinal Travel (In.)34
Table Cross Travel (In.)12
Travel of Knee (In.)14-1/2
Travel of Ram (In.)13-3/8
T-Slots Number and Size (In.)3 - 5/8
T-Slot Centers (In.)2-1/2
Work Table Weight Capacity (Lbs.)660
Motor (HP)3 HP, 230/460V, 3Ph, Prewired 230V
Overall Dimensions (L x W x H) (In.)66 x 63 x 85
Weight (Lbs)2,240
