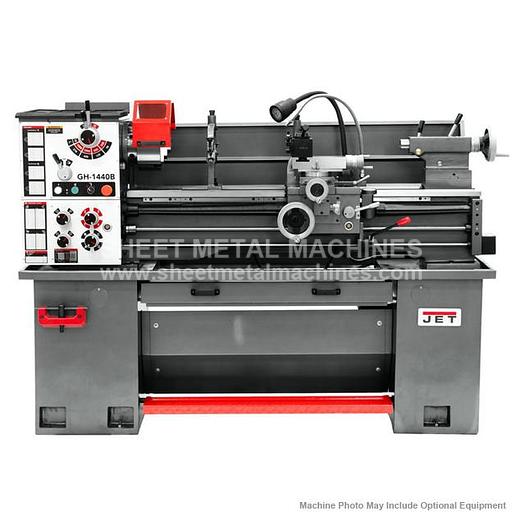

JET GH-1440B Geared Head Bench Lathe 331440

JET GH-1440B Geared Head Bench Lathe 331440

$11,569

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET GH-1440B Geared Head Bench Lathe 331440 This new JET GH-1440B Geared Head Bench Lathe is engineered for smooth, quiet operation and user versatility. Positioned on a heavy-duty stand with a newly added built-in footbrake, the GH-1440B includes precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability. The GH1440B also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked. Precision spindle roller bearings High quality steel hardened gears in headstock Lead screw cover Cast iron Stand Foot Brake comes standard Emergency Stop within easy reach of the Operator Emergency Stop within easy reach of the Operator Chuck Guard Electronic Chuck Key Docking Station, provides Operator safety as the Lathe will not turn without the chuck key being docked Mounted on Cast Iron stand with foot pedal, coolant, chuck key docking station ready to use Enclosed gearbox design provides smooth, quiet operation Gap bed section provided for larger diameter work Adjustable gibs are incorporated in the carriage & slideways Gearbox gives wide range of inch & metric threading & feed capabilities with few gear changes Compound and cross slide have backlash adjustment Tailstock may be offset for turning tapers and include and inch/metric graduated quill Spindle Spider available for ease of turning Gun barrels

STANDARD EQUIPMENT: 8" 3-Jaw Chuck 10" 4-Jaw Chuck Steady Rest with Roller Bearings Follow Rest Quick Change Toolpost 5pc Set of Holders LED Work Lamp MT3 Live Center MT-5/3 Sleeve 650226 - Gunsmithing Spindle Spider for Models GH-1440B: $118.00 AVAILABLE PACKAGES — GH-1440B Lathe Packages - CALL FOR PRICE AND AVAILABILITY

Specifications

ManufacturerJet
ModelGH-1440B
ConditionNew
Stock Number331440
Part#331440
Swing Over Bed (in.)14
Swing Over Cross Slide (in.)8
Swing Through Gap (in.)20
Length of Gap (in.)8
Distance Between Centers (in.)36-7/8
Spindle Bore (in.)2
Spindle MountD1-5
Spindle Taper with SleeveMT6
Number of Spindle Speeds8
Range of Spindle Speeds (RPM)70-1900
Number of Longitudinal & Cross Feed Rates32/32
Range of Longitudinal Feeds (IPR)0.002 -0.0548
Range of Cross Feeds (IPR)0.007 -0.0187
Number of Inch Threads34
Range of Inch Threads (in.)4-56
Number of Metric Threads26
Range of Metric Threads (mm)0.4-7
Maximum Tool Size (in.)4/5 x 4/5
Compound Slide Travel (in.)3-1/2
Cross Slide Travel (in.)7
Carriage Travel (in.)37-2/5
Tailstock Spindle Travel (in.)4
Taper in Tailstock SpindleMT4
Follow Rest Capacity (in.)0.31-2.16
Steady Rest Capacity - (in.)0.31-2.95
Width of Bed (in.)7.32
Motor (HP)2 HP, 230V, Single Phase
Prewired230V
Overall Dim. w/ Stand (in.)76-13/32 x 29-29/32 x 59-13/16
Weight (lb.)1,753
