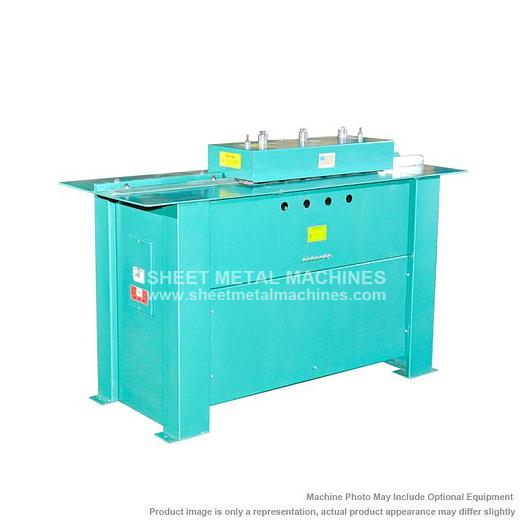

TIN KNOCKER Pittsburgh Roll Former TK 16 PITTS

TIN KNOCKER Pittsburgh Roll Former TK 16 PITTS


orCall 386-304-3720


Please note: many products ship straight from manufacturer TIN KNOCKER 16 ga. Pittsburgh Roll Former TK 16 PITTS IT COMES LOADED!!! The 16 gauge Pittsburgh Lock machine has 7 forming stations with 2 forming positions. One position forms the Pittsburgh Lock, while the outboard position has the ability of forming a number of other profiles, to include: Acme, Drive Cleat or 4 in 1 rolls (3/16” Right Angle Flange, 7/16” Right Angle Flange, Standing Seam and T-Connection). You don’t pay extra for the choice of opposing rolls, either. You get your choice of rolls opposite the Pittsburgh rolls.


ManufacturerTin Knocker
ModelTK 16 PITTS
Stock NumberTK 16 PITTS
Capacity:16-20 Ga. uses approx. 1-3/8” of material
Motor:3HP, 230/3/60, 1PH Optional (PLEASE SPECIFY)
Speed:40-45 ft per minute
Depth of Pocket/Size:1/2” width of hammer-over edge adjustable up to 3/8
