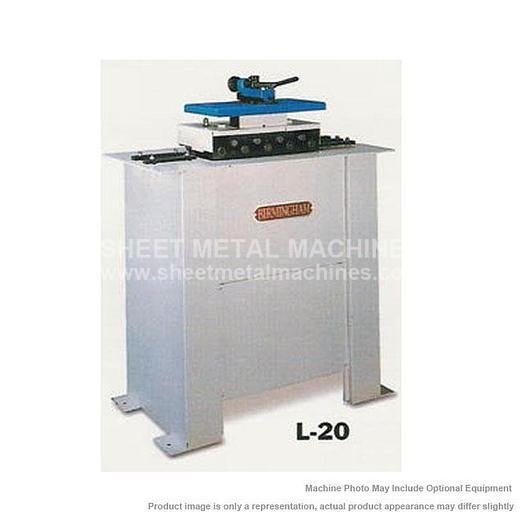

BIRMINGHAM Lock Forming Machine L-20

BIRMINGHAM Lock Forming Machine L-20
Contact us for price
Description
Please note: many products ship straight from manufacturer BIRMINGHAM 20 - 26 Ga. Lock Forming Machine L-20
- All steel forming head
- Hardened and ground shafts
- Case hardening steel forming rolls
- Machine cut gear and needle type roller bearing throughout
- MADE IN TAIWAN
OPTIONAL ITEMS:
- DSR-20: 20 Ga Double Seam Roll Set: $CALL
- FA-20: Flange attachment: $CALL
- RAR-20: Right Angle Roll Set: $CALL
- DCR-20: Drive Cleat Roll Set: $CALL
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
Manufacturer | Birmingham |
Model | L-20 |
Condition | New |
Stock Number | L-20 |
Capacity | 20 to 26 Ga. Use approximately 1" of material |
Depth of pocket | 5/16" width of hammer-over edge adjustable up to 3/8" |
Speed | 25 feed per minute |
Motor | 1 HP 110V, single phase |
Drive | V-belt |
Stand | ARC welded steel. Heavy top plate |
Dimensions | 36" x 16.5" x 36.5" |
Net weight | Approximately 320 lbs. |
