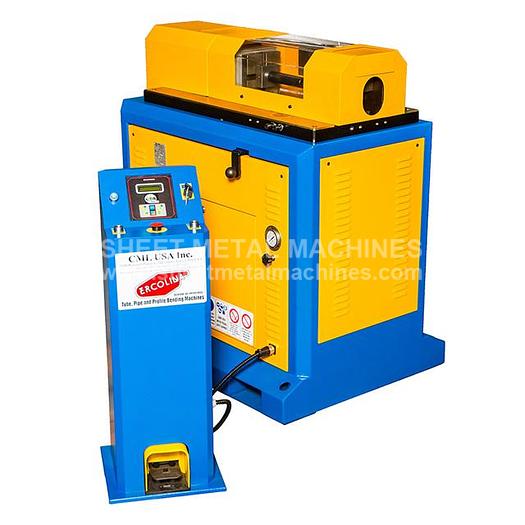

ERCOLINA ERA PRESS Tube & Pipe Swaging and Metalworking Machine EP25H2-V2

ERCOLINA ERA PRESS Tube & Pipe Swaging and Metalworking Machine EP25H2-V2

$26,200

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ERCOLINA ERA PRESS Tube & Pipe Swaging and Metalworking Machine EP25H2-V2 ITEM: 25 Ton Tube & Pipe Swaging and Metalworking Machine MANUFACTURER: ERCOLINA MODEL: ERA PRESS PART# EP25H2-V2 Ercolina’s EP25H2-V2 (25 ton hydraulic force) Era Press metalworking machine is a programmable tube and pipe swaging machine and metalworking press. Expands and reduces tube and pipe ends Performs metalworking press operations Tooling available for tube flaring & flanging Square and rectangular tooling available Programmable touchpad control with backlit LCD display Heavy duty structure and rigid components Adjustable working speed and hydraulic force Quick change modular tooling Remote pendent with low voltage controls Programmable cylinder positioning Hydraulic material clamping system Tooling sets sold separately. *Swage depth greater than 4-1/2" requires special tooling. Must be specified at time of order.

Specifications

ManufacturerErcolina
ModelEP25H2-V2
ConditionNew
Stock NumberEP25H2-V2
Folding Capacity: Steel Flat Bar5" x 1/2"
Tube Diameter Max. Expansion / Reduction3-1/2" x .120
Working Speed1/2" ~ 1" sec.
ProgrammingYes / Touchpad
Hydraulic Force25 Ton
Horizontal PressYes
Maximum Stroke of Cylinder6-3/4"
Maximum Swage Depth6"*
Voltage Requirement220V/440V 3ph
Motor3-1/2 hp 50-60Hz
Motor Speed3,650 RPM
Length, Width, Height41" x 29-1/2" x 48"
Shipping Weight1,550 lbs.
