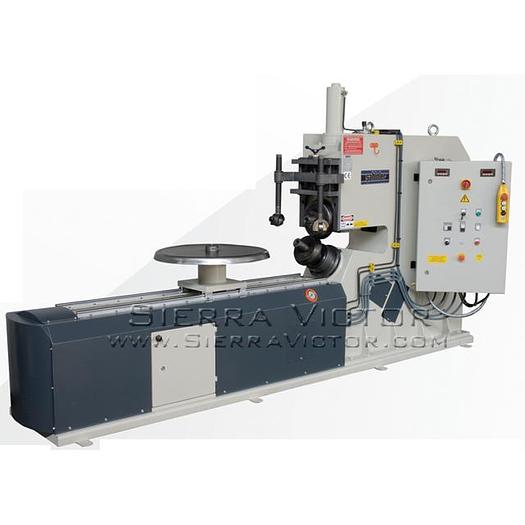

COLE-TUVE Combo Shear Flanger SDK-6
COLE-TUVE Combo Shear Flanger SDK-6
Contact us for price
Description
Please note: many products ship straight from manufacturer 1/4" COLE-TUVE Combo Shear Flanger SDK-6 One set of flanging rolls included. (R 25) One set of cutting blades included. 2 Rotation speed with max. torque selection 7-21 m/min Top and bottom flanging rolls powered in rotation with planetary reducers Both flat and crowned Bottoms flanging. Motorised manual adjustable bottom height for both flat and crowned dish flanging. Both cutting and flanging operation on the same head. ITEM: 1/4" Combo Shear Flanger MANUFACTURER: COLE-TUVE / SAHINLER MODEL: SDK-6
Specifications
| Manufacturer | Cole-Tuve |
| Model | SDK-6 |
| Condition | New |
| Stock Number | SDK-6 |
| Max. Plate Diameter (mm) | 4,000 |
| Min. Plate Diameter (mm) | 440 |
| Max. Flanging Height (mm) | 50 |
| Max. Flanging Radius (mm) | 35 |
| Max. Plate Thickness - Mild Steel* (mm) | 6mm (1/4") |
| Max. Plate Thickness - Stainless Steel** (mm) | 4 |
| Main Motor (kW) | 8 |
| Length (mm) | 4,250 |
| Width (mm) | 720 |
| Height (mm) | 2,000 |
| Weight (kg) | 2,050 |
