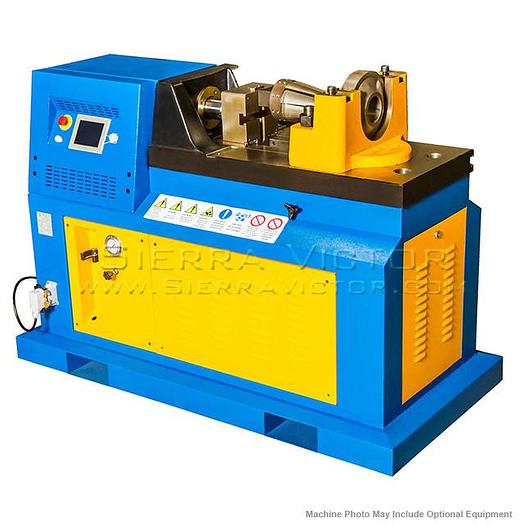

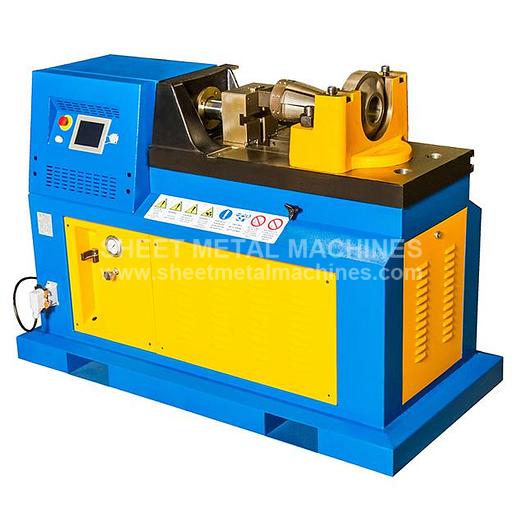

ERCOLINA ERA PRESS Tube & Pipe Swaging and Metalworking Machine EP60H

ERCOLINA ERA PRESS Tube & Pipe Swaging and Metalworking Machine EP60H
$38,900
Description
Please note: many products ship straight from manufacturer ERCOLINA ERA PRESS Tube & Pipe Swaging and Metalworking Machine EP60H ITEM: 50 Ton Tube & Pipe Swaging and Metalworking Machine MANUFACTURER: ERCOLINA MODEL: ERA PRESS PART# EP60H Ercolina’s EP60H (60 ton hydraulic force) Era Press metalworking machine is a programmable tube and pipe swaging machine and metalworking press Expands and reduces tube and pipe ends Performs metalworking press operations Tooling available for tube flaring & flanging Square and rectangular tooling available Programmable touchpad control with backlit LCD display Heavy duty structure and rigid components Adjustable working speed and hydraulic force Quick change modular tooling Remote pendent with low voltage controls Programmable cylinder positioning Hydraulic material clamping system Tooling sets sold separately. Hand-held remote control certified class three safety LCD touch screen control Unlimited program storage with USB Punch or finger-style swage tooling Energy saving motor shuts off when not in use Optional side shift feature reduces tooling changeover Swage depth greater than 4-1/2" requires special tooling. Must be specified at time of order.
Specifications
Manufacturer | Ercolina |
Model | EP60H |
Condition | New |
Stock Number | EP60H |
Folding Capacity: Steel Flat Bar | 7-7/8" x 3/4" |
Tube Diameter Max. Expansion / Reduction | 3-1/2" - 4-1/2" x .120, Tooling Dependent |
Square Tube | 2-1/2" |
Working Speed | Variable programmable |
Programming | LCD touch screen |
Hydraulic Force | 50 Tons |
Horizontal Press | Yes |
Maximum Stroke of Cylinder | 11-1/2" |
Maximum Swage Depth | 8" * |
Voltage Requirement | 440V, 3ph |
Motor | 8 hp 50-60Hz |
Motor Speed | 3,650 RPM |
Length, Width, Height | 48" x 26" x 44" |
Shipping Weight | 1,800 lbs. |
