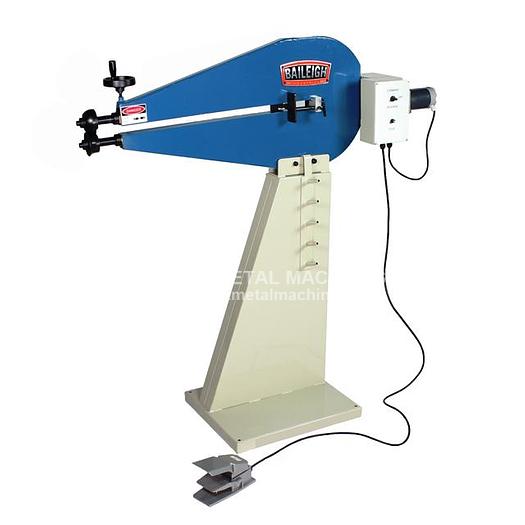

BAILEIGH Power Bead Roller BR-18E-24

BAILEIGH Power Bead Roller BR-18E-24


orCall 386-304-3720


Please note: many products ship straight from manufacturer BAILEIGH 18 ga x 24" Power Bead Roller BR-18E-24 Built with foot pedal controls, this electric bead roller leaves your hands free to work the material. An industrial-grade motor, gearbox, and plate steel frame ensure accuracy.

  • 16 gauge mild steel and 14 gauge aluminum capacity.
  • 24” throat depth is perfect for 4’ x 8’ sheets of sheet metal, but the design still makes it simple for you to create intricate patterns.
  • Runs on 110-volt single-phase power, so you can plug it in almost anywhere.
  • Intuitive variable-speed foot pedal design: press harder to roll faster. Apply less force for slower, more careful forming.
  • Up to 30 rpm feed rate, which amounts to 280” per minute.
  • Rolls can run forward or in reverse. Just flip the switch to change direction.
  • Adjustable top roll lets you set your desired forming depth.
  • Depth stop within the throat helps you make straight, repeatable beads.
  • We offer tooling to fit most applications. See our bead roller dies for the BR-18E-24.
  • ¾” shaft diameter is compatible with most commercial roll sets.
  • Robust steel floor stand includes a rack for roll sets.
  • All moving parts turn on long-lasting bronze bushings with grease fittings for convenient maintenance.
  • Fully welded plate steel frame keeps the bead roller rigid, so it makes quality profiles over many years of use.
  • Covered by a 1-year parts warranty.
  • We include lifetime technical support by phone. Call our team of experienced metalworkers when you have questions or problems.
  • This sheet metal bead roller and its parts are almost always in stock for fast deliveries.
  • Recommended for: Fabricators or shops looking for a fast and easy way to make beads and profiles.
  • You can add an optional worktable to this bead roller machine.

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



ManufacturerBaileigh Industrial
Stock NumberBR-18E-24
Motor Hp1/8 HP
Max. Thickness (Mild Steel)16 gauge
Roll HolderIncluded
Throat Depth24"
Adjustable Depth StopIncluded
Shipping Weight150 lbs.
Shipping Dimensions45" x 26" x 13"
