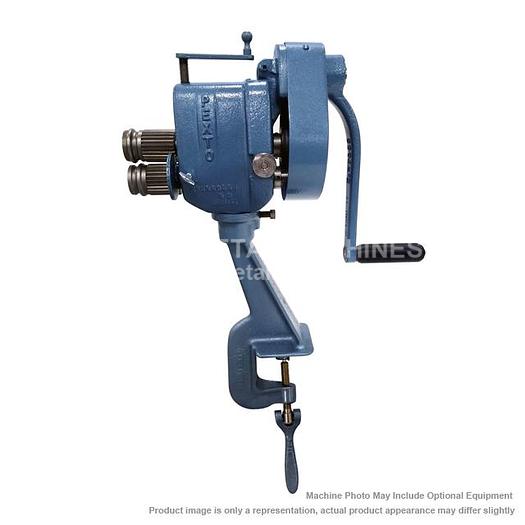

ROPER WHITNEY Crimping & Beading Machine NO. 0585

ROPER WHITNEY Crimping & Beading Machine NO. 0585
$1,680
Description
Please note: many products ship straight from manufacturer ROPER WHITNEY Crimping & Beading Machine NO. 0585 ITEM: 20 ga. Crimping & Beading Machine MANUFACTURER: ROPER WHITNEY MODEL: NO. 0585 PART# 164005850 Pexto forming machines included in this section offer a broad variety of shapes and capabilities in forming sheet metal for a combination of uses: beading, crimping, setting down, double seaming, turning, burring, wiring, elbow edging, flanging, and flattening. All are precise in the job they do and are readily adaptable to job requirements. The roll chart is indicative of their flexibility. Most are portable and may be set up at the job with a clamp-on base. These machines include Ogee bead and crimping rolls to provide one pass combined crimping and beading. They are adjustable for deep or shallow beading and for “fade-away” crimping. By replacing the beading rolls with spacing collars (furnished), the machines can be used for crimping only. 3/8″ and 1/2″ Single Bead Rolls are available for the No. 0585 machine. MADE IN USA STANDARD EQUIPMENT: PART # ITEM 350000035 Crimping Roll - Upper 350000036 Crimping Roll - Lower 350000033 Ogee Bead Roll - Upper 350000034 Ogee Bead Roll - Lower PART # ITEM 350000057 3/8" Beading Roll - Upper 350000058 3/8" Beading Roll - Lower 350000061 1/2" Beading Roll - Upper 350000062 1/2" Beading Roll - Lower 381700083 Spacing Collar ( 2 required ) 259700015 Standard Gauge
Specifications
Manufacturer | Roper Whitney |
Model | NO. 0585 |
Condition | New |
Stock Number | 164005850 |
Catalog No. | 164005850 |
Maximum Capacity - Mild Steel | 20 ga |
Distance between shaft centers | 1-3/4" |
Ratio Gearing | 1:1 |
Dimensions | 19" x 10" x 9" |
Weight | 51 lbs |
