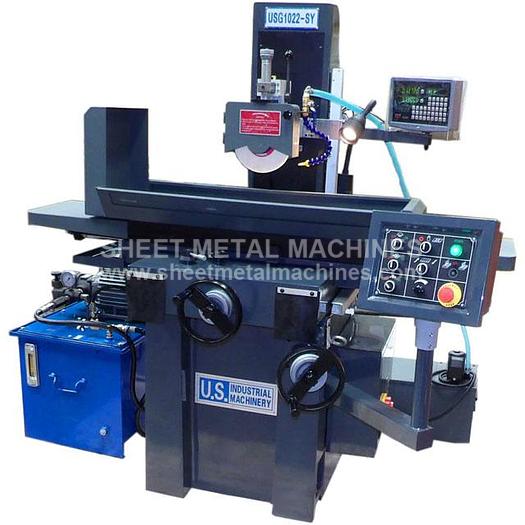

U.S. INDUSTRIAL 2-Axis Automatic Toolroom Surface Grinder USG1022-SY

U.S. INDUSTRIAL 2-Axis Automatic Toolroom Surface Grinder USG1022-SY

$14,495

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer U.S. INDUSTRIAL 10" x 22" 2-Axis Automatic Toolroom Surface Grinder USG1022-SY This is a medium duty toolroom Surface Grinder with hydraulic reciprocation of table and electric power with incremental setting crossfeed. Downfeed increment is manually set by operator. This is a TWO-AXIS Automatic Surface Grinder. PLEASE NOTE: Our machines are shipped without oil. Please refill the oil before operating the machine. Also remember that the machines must be anchored and leveled, or the warranty may be voided. Full 220V or 440V is required. Low voltage may hinder operation of or damage the machine. STANDARD EQUIPMENT: Grinding wheel Balancing base and arbor Over wheel dresser w/diamond Manual one-shot lube Permanent Magnetic Chuck: 9.8” x 19.7” Wheel flange Toolbox and tools Coolant system Sino Two-axis digital readout ITEM: 10" x 22" 2-Axis Automatic Toolroom Surface Grinder MANUFACTURER: U.S. INDUSTRIAL MODEL: USG1022-SY Extra general purpose factory grinding wheel Extra wheel flange

Specifications

ManufacturerUS Industrial
ConditionNew
Stock NumberUSG1022-SY
Parallelism & Flatness Accuracy<0.0008"
Max. Travel (Longitudinal x Cross)22" x 10.2"
Max. Distance Spindle Center To Table17.7"
Max Grinding Wheel (ODxTxID) (Supplied with one 7” x 1/2” grinding wheel)8” x 3/4” x 1-1/4” (200mm x 31.75mm x 20mm)
Grinding Wheel speed3360 rpm
Spindle Motor2 HP, 220 or 440 Volts, 3 phase (please specify)
Hyd. unit Motor2 HP, 220 or 440 Volts, 3 phase (please specify)
Dimensions, crated for shipping48" W x 66.4" L x 73" T
Machine Weight (Gross Shipping)2,300 lbs
