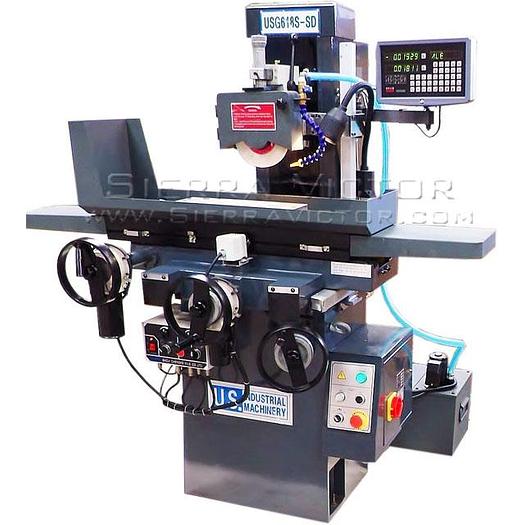

U.S. INDUSTRIAL 2-Axis Automatic Toolroom Surface Grinder USG618S-SD
U.S. INDUSTRIAL 2-Axis Automatic Toolroom Surface Grinder USG618S-SD
$13,990 Call for Freight Specials
Description
Please note: many products ship straight from manufacturer
U.S. INDUSTRIAL 6" x 18" 2-Axis Automatic Toolroom Surface Grinder USG618S-SD
- This is a light duty toolroom Surface Grinder with electric motorized reciprocation of table and crossfeed. Downfeed increment is manually set by operator. This is a TWO AXIS automatic Surface Grinder
- PLEASE NOTE: Our machines are shipped without oil. Please refill the oil before operating the machine. Also remember that the machines must be anchored and leveled, or the warranty may be voided. Full 220V or 440V is required. Low voltage may hinder operation of or damage the machine.
STANDARD EQUIPMENT:
- Grinding wheel
- Balancing base and arbor
- Over wheel dresser w/diamond
- Manual one-shot lube
- Permanent Magnetic Chuck: 5.9” x 15.75”
- Wheel flange
- Toolbox and tools
- Coolant system
- Sino Two-axis digital readout
OPTIONAL ITEMS: CALL FOR PRICE
- Extra general purpose factory grinding wheel
- Extra wheel flange
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
| Manufacturer | US Industrial |
| Model | USG618S-SD |
| Condition | New |
| Stock Number | USG618S-SD |
| Two-Axis Readout Included | Yes |
| Type of Operation | Electric Recip. and Elec. Cross |
| Slideway Type | V Rail With Ball Track |
| Machine Lube System | One-Shot Manual |
| Function of table reciprocation | Elec. Drive table & cross |
| Wheelhead movement up/down | handwheel-manual |
| Wheelhead dial graduation | .0002" |
| Perm mag chuck included | 5.9" x 15.75" |
| Pole spacing of mag chuck | .125" |
| Table/cross travel max | 18" x 7" |
| Cross dial graduation | .0005" |
| Grinding wheel supplied | 7" x 1/2" - 1.25" hole |
| Dist under wheel to chuck | 7-1/2" |
| Wheel balancing arbor/base | Yes - included |
| Over wheel diamond dresser | Yes - included |
| Worklight | included |
| Spindle RPM | 3360 |
| Hydraulic System | N/A |
| Coolant Pump - Tank size | 40 watt - 9 gallons |
| Full load amps @ 220 Volts | 6 |
| Max Grinding Wheel (ODxTxID) (Supplied with one 7” x 1/2” grinding wheel) | 8” x 3/4” x 1-1/4” (200mm x 20mm x 31.75mm) |
