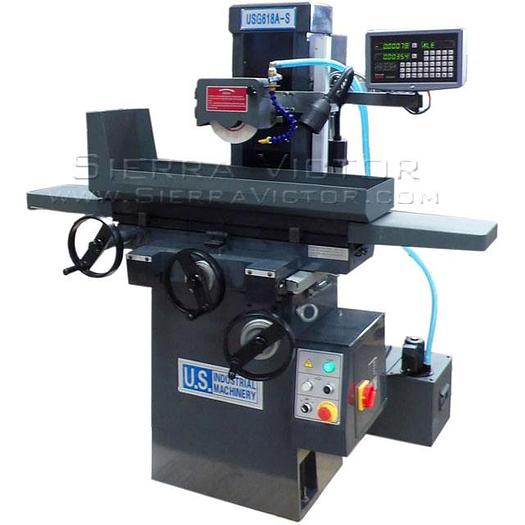

U.S. INDUSTRIAL Toolroom Surface Grinder USG618A-S

U.S. INDUSTRIAL Toolroom Surface Grinder USG618A-S

$10,990

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer U.S. INDUSTRIAL 6" x 18" Toolroom Surface Grinder USG618A-S

  • This is a light duty toolroom Surface Grinder with MANUAL reciprocation of table and crossfeed. Downfeed increment is also manually set by operator.
  • PLEASE NOTE: Our machines are shipped without oil. Please refill the oil before operating the machine. Also remember that the machines must be anchored and leveled, or the warranty may be voided. Full 220V or 440V is required. Low voltage may hinder operation of or damage the machine.


STANDARD EQUIPMENT:

  • Grinding wheel
  • Balancing base and arbor
  • Table dresser with diamond nib
  • Manual one-shot lube
  • Permanent Magnetic Chuck: 5.9” x 15.75”
  • Wheel flange
  • Toolbox and tools
  • Coolant system
  • Sino Two-axis digital readout

OPTIONAL ITEMS: CALL FOR PRICE

  • Extra general purpose factory grinding wheel
  • Extra wheel flange


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerUS Industrial
ModelUSG618A-S
ConditionNew
Stock NumberUSG618A-S
Two-Axis Readout IncludedYes
Type of OperationAll Manual
Slideway TypeV Rail With Ball Track
Machine Lube SystemOne-Shot Manual
Function of table reciprocationManual-handwheel only
Wheelhead movement up/downhandwheel-manual
Wheelhead dial graduation.0002"
Perm mag chuck included5.9" x 15.75"
Pole spacing of mag chuck.125"
Table/cross travel max18" x 7"
Cross dial graduation.0005"
Grinding wheel supplied7" x 1/2" - 1.25" hole
Dist under wheel to chuck7-1/2"
Wheel balancing arbor/baseYes - included
Over wheel diamond dresserNo - table dresser
Worklightincluded
Spindle RPM3360
Hydraulic SystemN/A
Coolant Pump - Tank size40 watt - 9 gallons
Full load amps @ 220 Volts4
Max Grinding Wheel (ODxTxID) (Supplied with one 7” x 1/2” grinding wheel)8” x 3/4” x 1-1/4” (200mm x 20mm x 31.75mm)
